Description
Shipping & Return

Feature

Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
6 Phase Power Design
Supports DDR4 4733+ (OC)
1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Graphics Output Options: D-Sub, HDMI
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
6 x USB 2.0(2 x Rear, 4 x Front)
Realtek Gigabit LAN

Technical Details

Unique Feature	ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
CPU	- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors* - 6 Power Phase design
Chipset	- AMD A520
Memory	- Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - Max. capacity of system memory: 64GB** - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots
BIOS	- 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Graphics	- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Dual graphics output: support D-Sub and HDMI ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 Port - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port - Supports Microsoft PlayReady
Audio	- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) - Supports Surge Protection
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Slots	- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* - 1 x PCI Express 3.0 x1 Slot
Storage	CPU: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* Chipset: - 4 x SATA3 6.0 Gb/s Connectors
Connector	- 1 x SPI TPM Header - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

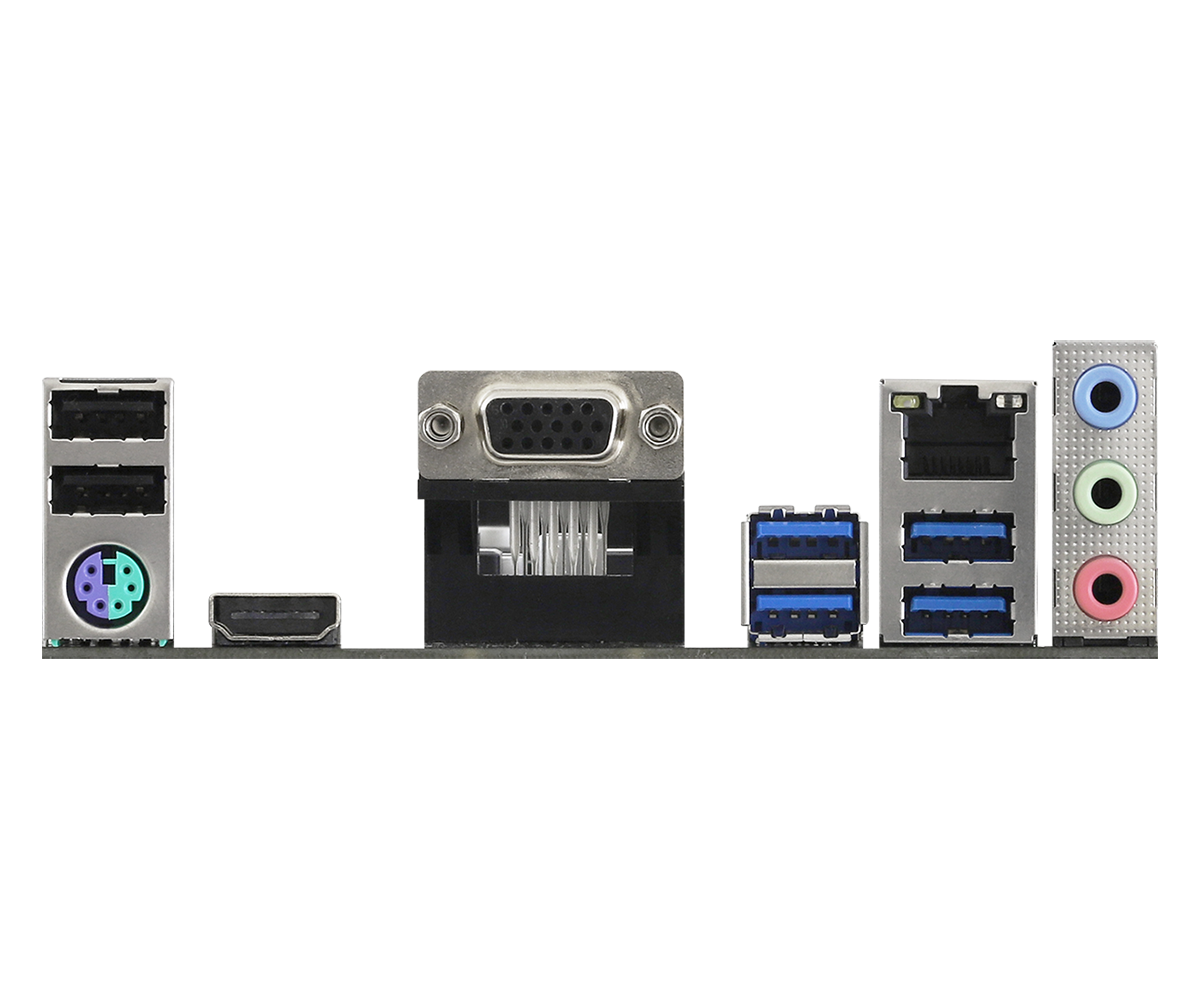

Rear Panel I/O	- 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor	- Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm - Solid Capacitor design
OS	- Microsoft Windows 10 64-bit / 11 64-bit
