Specification	Details

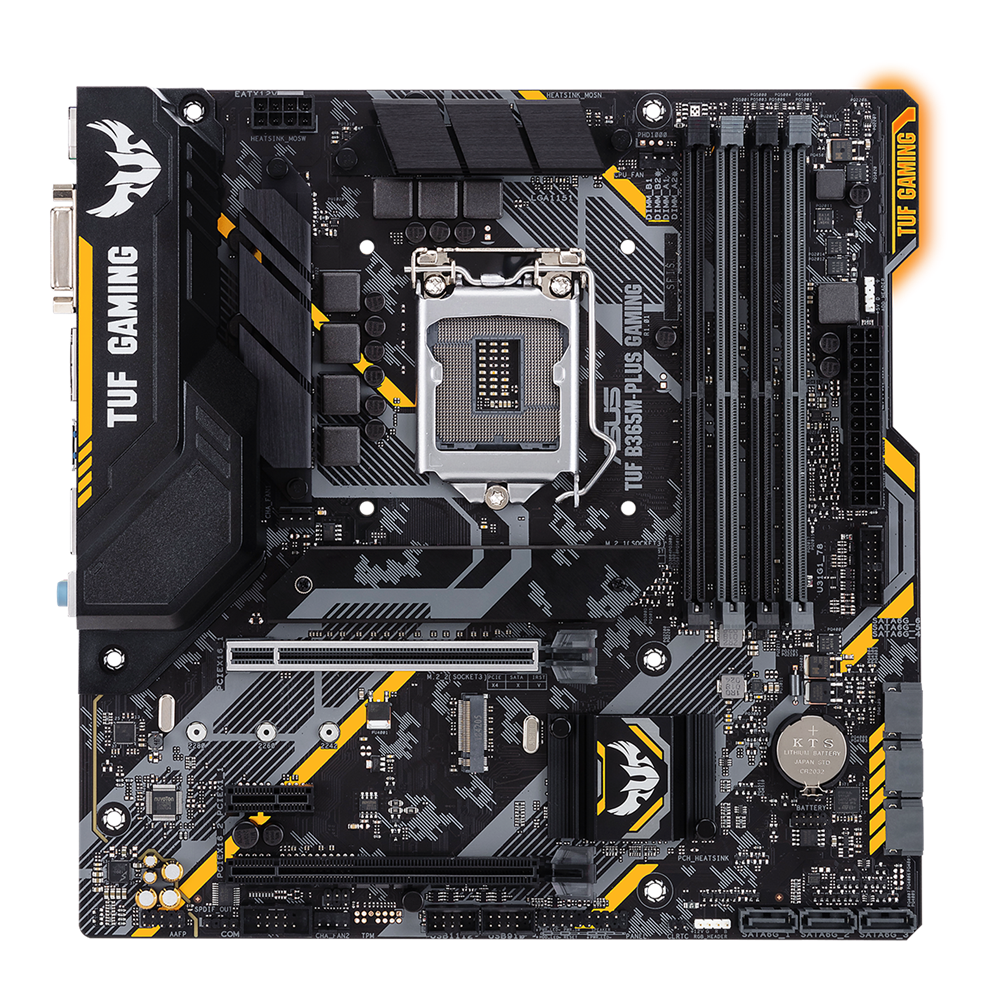

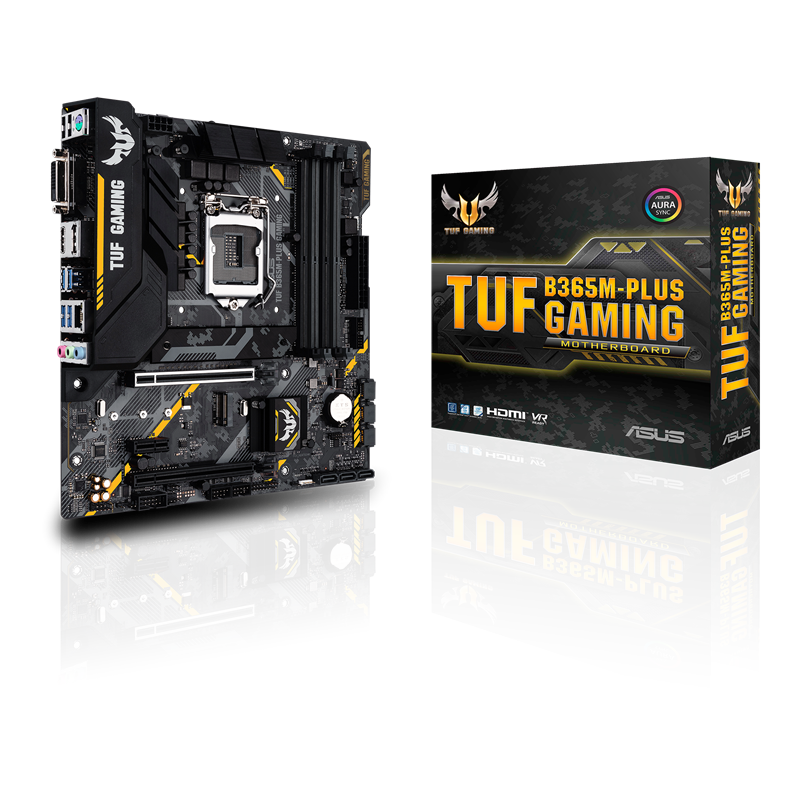

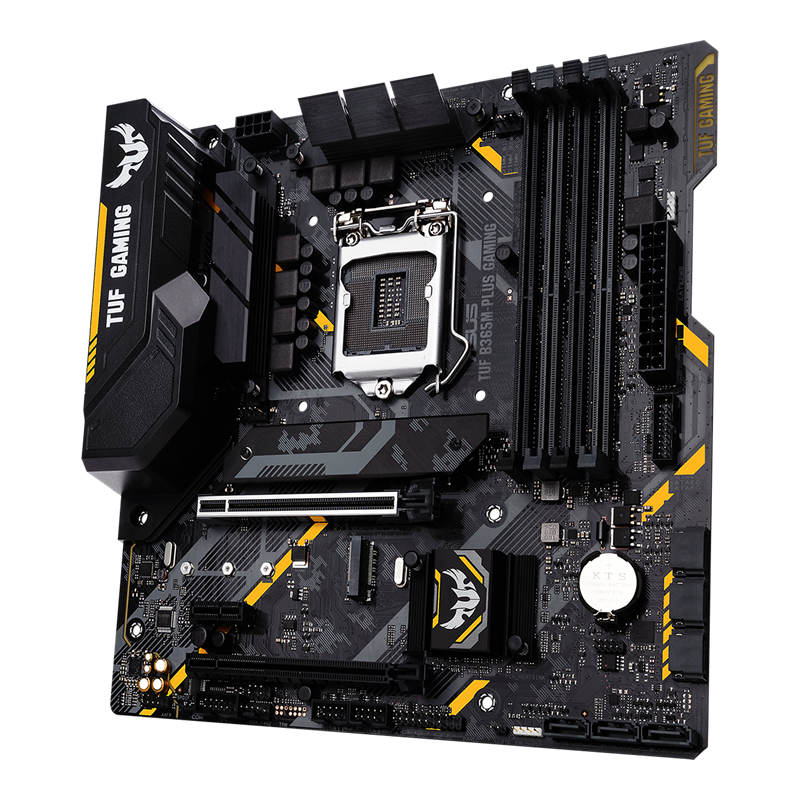

Model	TUF B365M-PLUS GAMING
CPU	* Refer to www.asus.com for CPU support list.,Intel Socket 11519th / 8th Gen Intel Core, Pentium Gold and Celeron Processors,Supports Intel 14nm CPU,Supports Intel Turbo Boost Technology 2.0,* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset	Intel B365
Memory	* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)., Intel B365 Chipset ,4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory,Dual Channel Memory Architecture,Supports Intel Extreme Memory Profile (XMP),* The maximum memory frequency supported varies by processor,** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors.
Graphic	Integrated Graphics Processor- Intel HD Graphics support,Multi-VGA output support : HDMI/DVI-D/DisplayPort ports,- Supports HDMI with max. resolution 4096 x 2160 @ 30Hz,- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz,- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz,Maximum shared memory of 1024 MB (for iGPU exclusively),Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider,Supports up to 3 displays simultaneously
Multi-GPU Support	Supports AMD CrossFireX Technology
Expansion Slots	1 x PCIe 3.0 x16 (x16 mode),1 x PCIe 3.0 x16 (max at x4 mode),1 x PCIe 3.0/2.0 x1
Storage	Intel B365 Chipset : ,1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode),6 x SATA 6Gb/s port(s), gray,Support Raid 0, 1, 5, 10,Intel Optane Memory Ready
LAN	Intel I219V, 1 x Gigabit LAN,TUF LANGuard
Audio	Realtek ALC12008-Channel High Definition Audio CODEC,- Supports : Jack-detection, Front Panel Jack-retasking, Audio Feature : ,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports	6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board), Intel B365 Chipset : ,6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
Special Features	ASUS TUF PROTECTION ,- ASUS ESD Guard: Enhanced ESD protection,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS DIGI+ VRM: Precision control for stable power,- ASUS Safe Slot core+: PCIe slot fortified with a stainless-steel brace, ASUS OptiMem： ,- Optimem (Improved DDR4 stability), ASUS EPU : ,- EPU, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger,- PC Cleaner, ASUS Quiet Thermal Solution :,- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution,- ASUS Fan Xpert 2+, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3, ASUS Q-Design : ,- ASUS Q-Slot,- ASUS Q-DIMM, M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

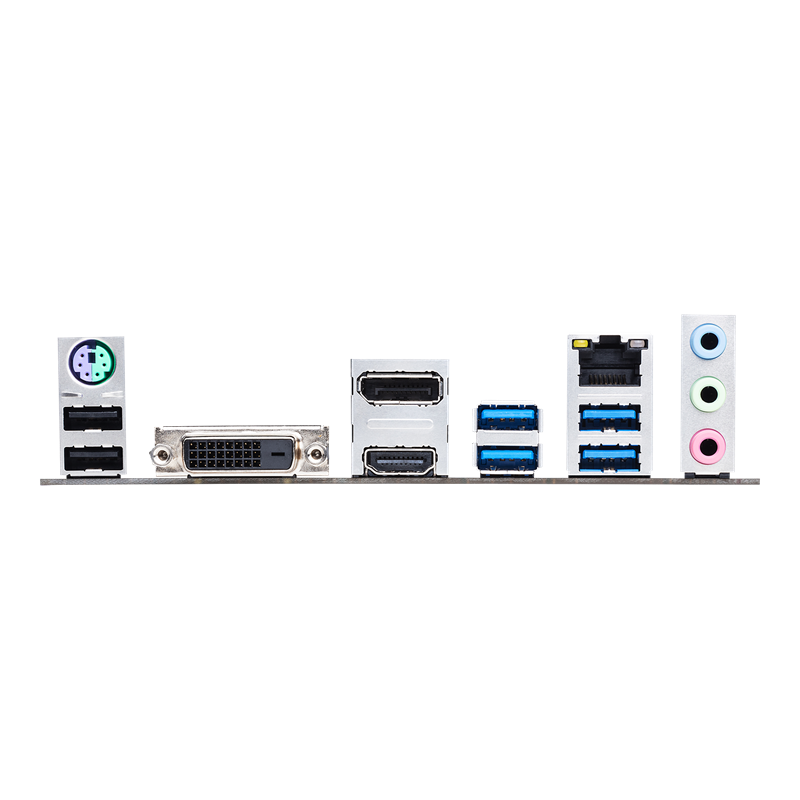

Back I/O Ports	4 x USB 3.1 Gen 1 Type-A up to 5Gbps,1 x PS/2 keyboard/mouse combo port(s),1 x DVI-D,1 x DisplayPort,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,1 x 8-channel Audio I/O
Internal I/O Ports	1 x Addressable RGB header,1 x Aura RGB Strip Header,1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices,1 x COM port(s) connector(s),6 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s),2 x Chassis Fan connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin EATX 12V Power connectors,1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x System panel connector

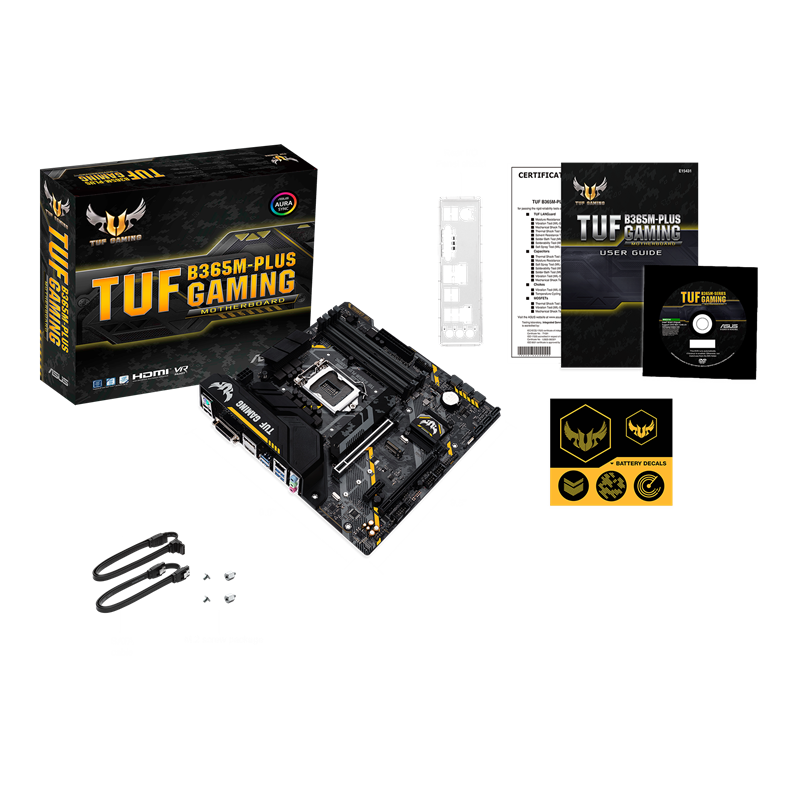

Accessories	2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),2 x M.2 screws,1 x Supporting DVD,1 x TUF GAMING Sticker,1 x TUF Certification card(s)
BIOS	128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Operating System	Windows 10 64-bit
Form Factor	mATX Form Factor,9.6 inch x 9.5 inch ( 24.4 cm x 24.1 cm )
Management Solution	WOL by PME, PXE
