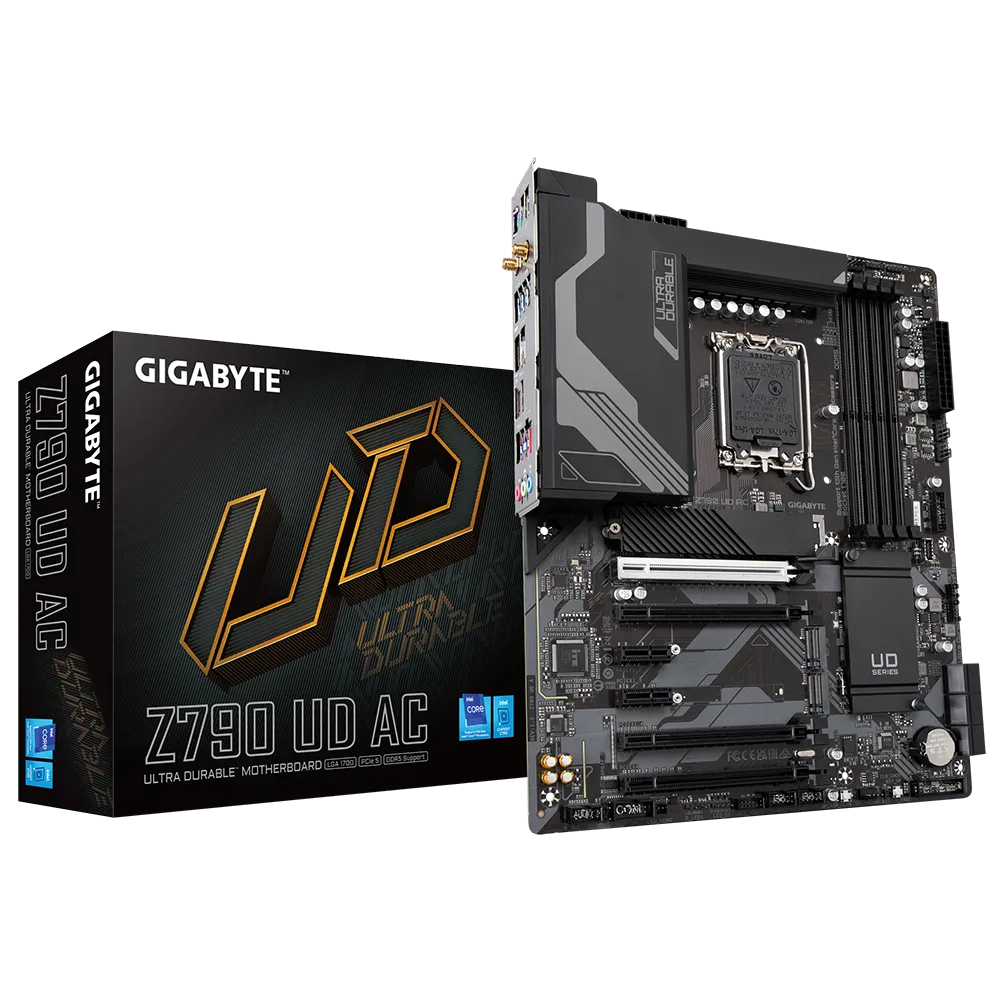

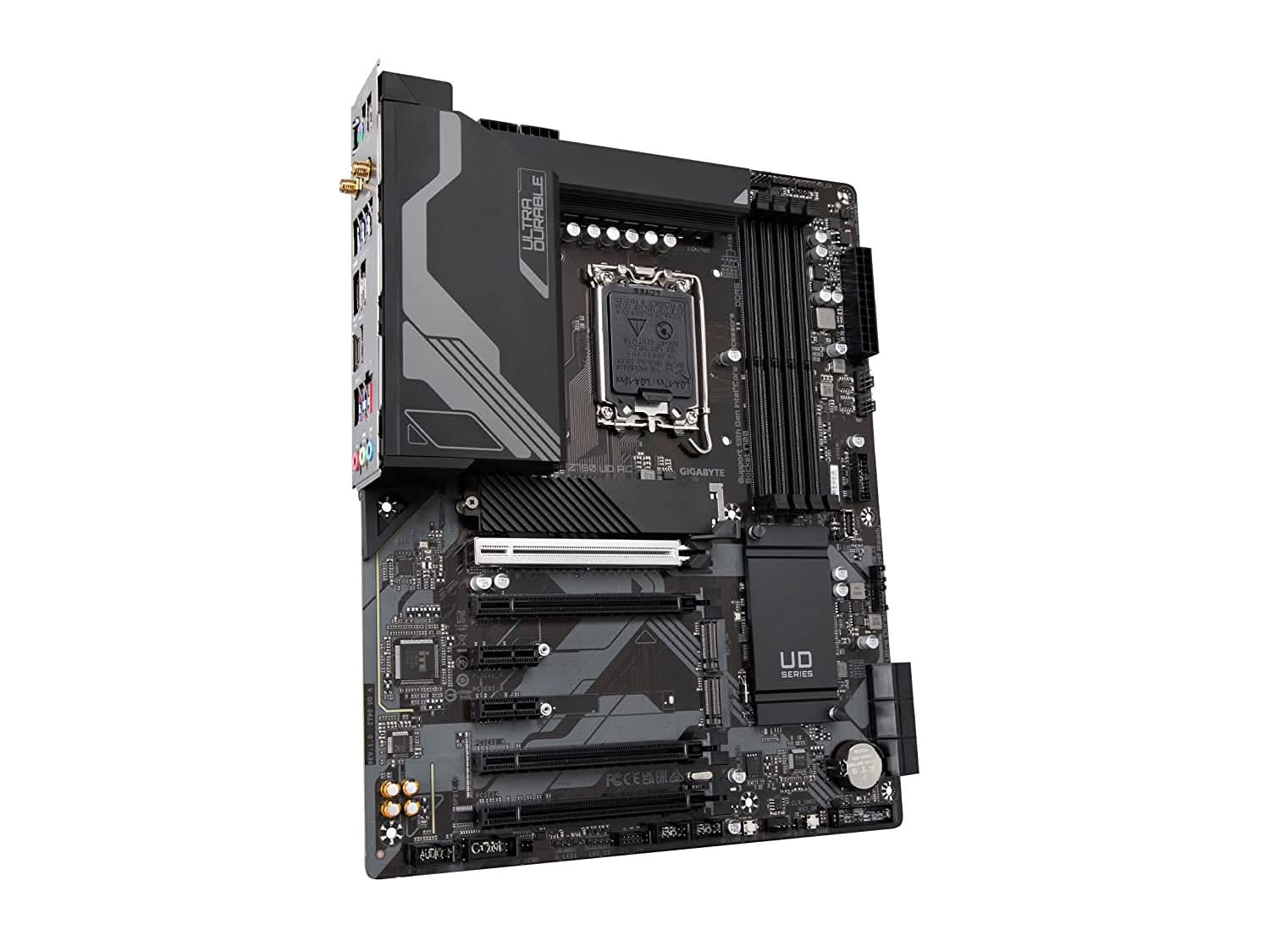

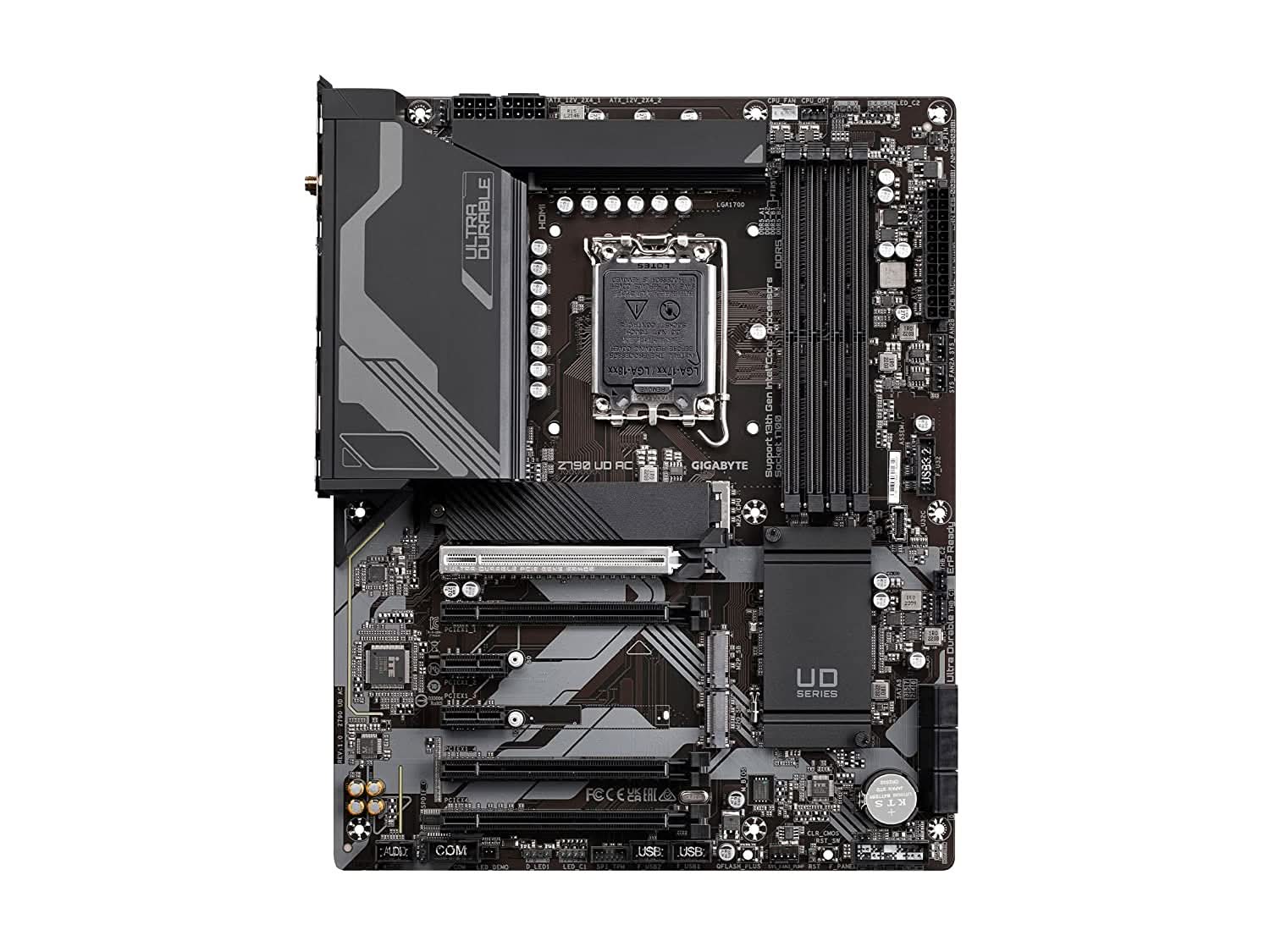

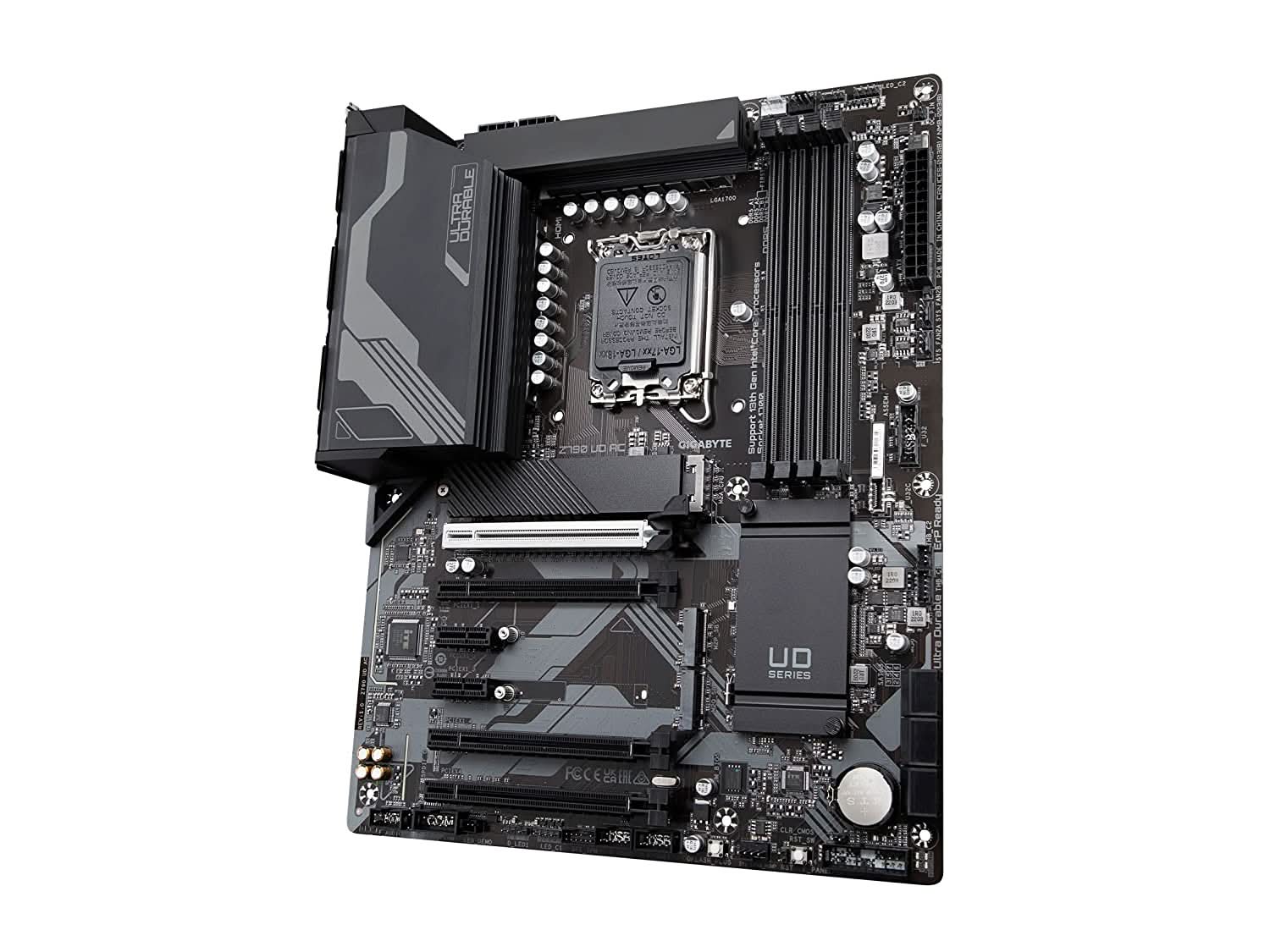

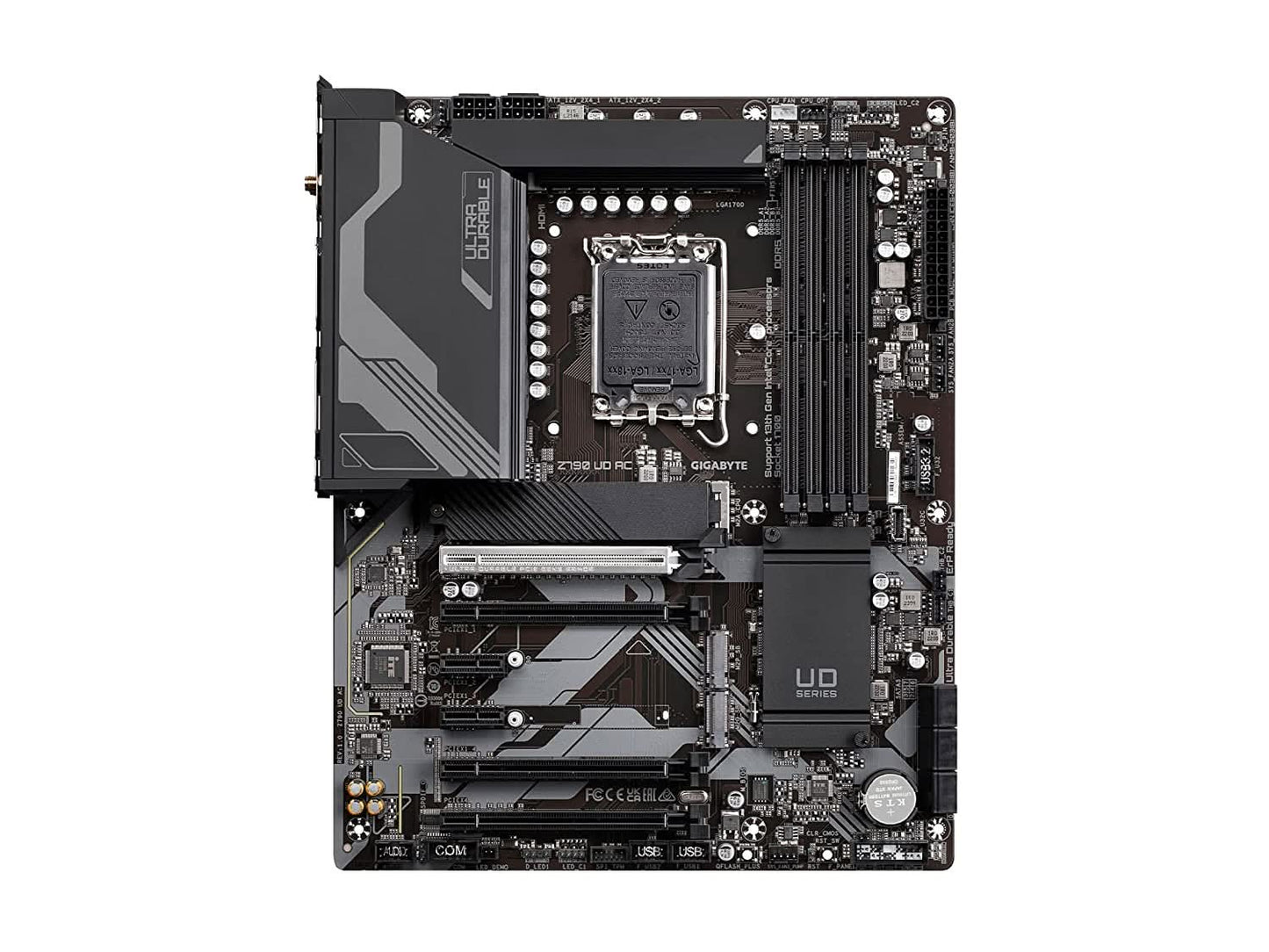

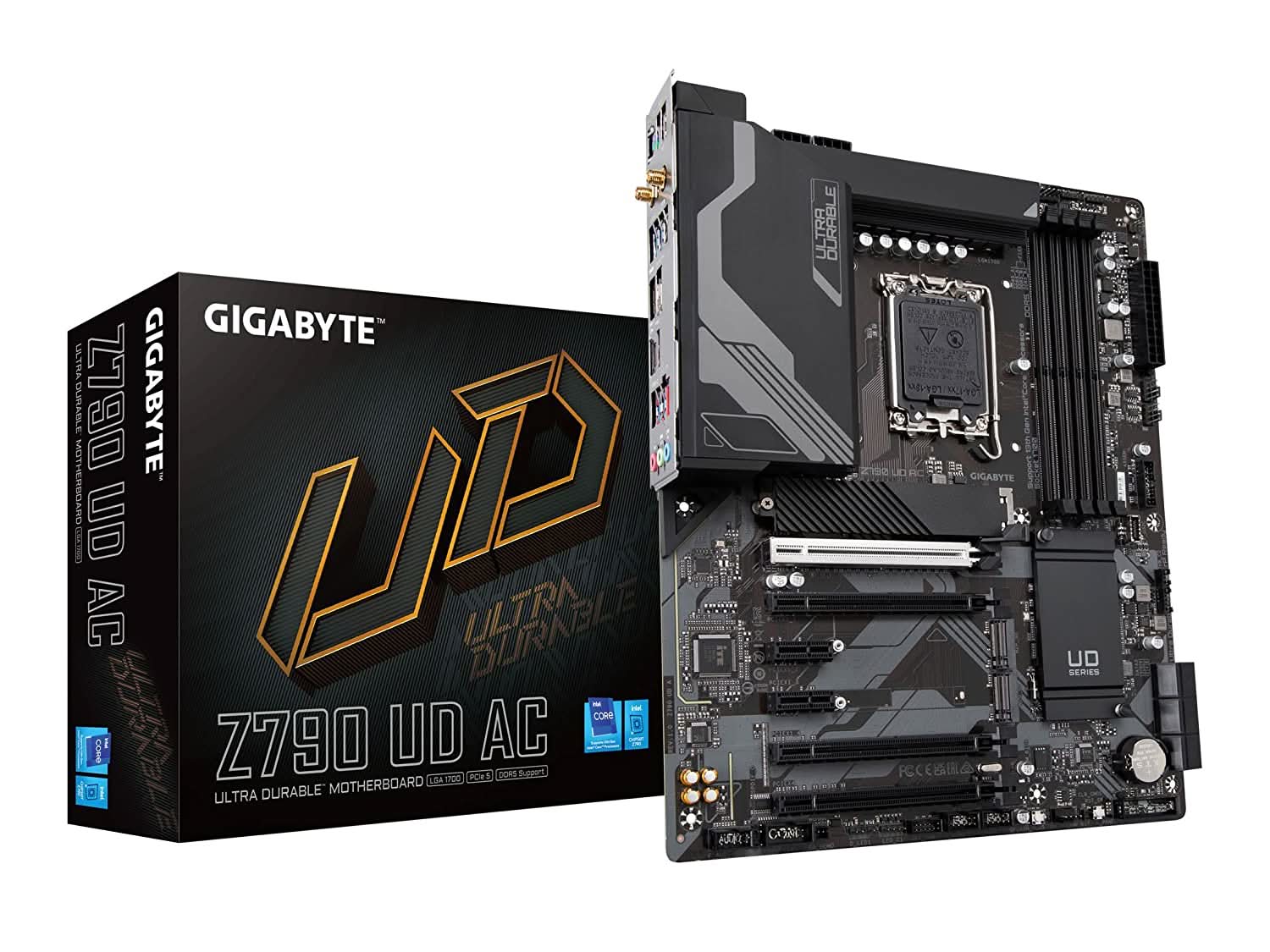

GIGABYTE GA-Z790-UD AC DDR5 INTEL LGA1700 MOTHERBOARD

Name: GIGABYTE GA-Z790-UD AC DDR5 INTEL LGA1700 MOTHERBOARD
Brand: Gigabyte
Price: 23096.0 INR
Availability: OutOfStock

₹ 23,096 ₹ 36,000

Discount: ₹ 12,904 (36%)

18 people are viewing this right now

Hurry Up! Only Few Left in Stock!

Notify Me

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Dispatch: 24 - 48hrs

Availability: In Stock Unavailable

SKU: 1084236

Vendor: gigabyte

Model Number: Z790 UD AC

Guaranteed safe & Secure checkout

Description
Shipping & Return

Specifications

CPU	LGA1700 socket: Support for the 13th and 12th Generation IntelÃ CoreÃ´, PentiumÃ Gold and CeleronÃ Processors
CPU	L3 cache varies with CPU
Chipset	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
	4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-IntelÃ HD Graphics support:
	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	Support for HDMI 2.0 version and HDCP 2.3.
	1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
	Support for DisplayPort 1.2 version and HDCP 2.3
Audio	RealtekÃ Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	Support for S/PDIF Out
LAN	RealtekÃ 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	IntelÃ Wi-Fi AC 9560
	WIFI a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
	BLUETOOTH 5.1
	Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate
Expansion Slots	CPU:
	1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
	2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_4)
	2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Storage Interface	CPU:
	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
	6 x SATA 6Gb/s connectors
USB	Chipset:
	1 x USB Type-CÃ port on the back panel, with USB 3.2 Gen 2x2 support
	1 x USB Type-CÃ port with USB 3.2 Gen 1 support, available through the internal USB header
	1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
	Chipset+2 USB 2.0 Hubs:
	8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	2 x 8-pin ATX 12V power connectors
	1 x CPU fan header
	1 x water cooling CPU fan header
	3 x system fan headers
	1 x system fan/water cooling pump header
	2 x addressable LED strip headers
	2 x RGB LED strip headers
	3 x M.2 Socket 3 connectors
	6 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x S/PDIF Out header
	1 x USB Type-CÃ header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x serial port header
	2 x ThunderboltÃ´ add-in card connectors
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x reset button
	1 x Q-Flash Plus button
	1 x reset jumper
	1 x Clear CMOS jumper

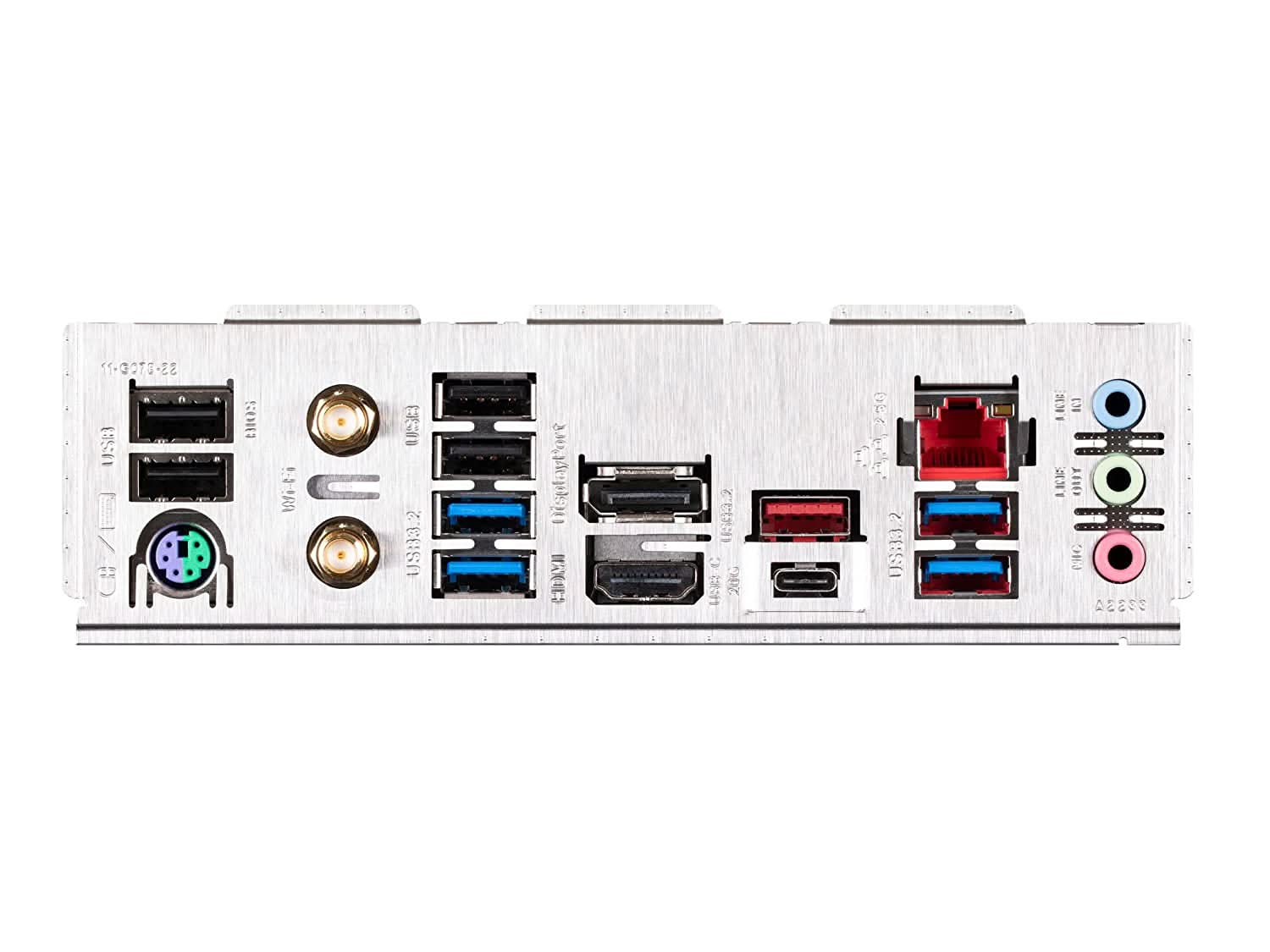

Back Panel Connectors	1 x USB Type-CÃ port, with USB 3.2 Gen 2x2 support
	1 x USB 3.2 Gen 2 Type-A port (red)
	4 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	2 x SMA antenna connectors (1T1R)
	1 x HDMI 2.0 port
	1 x DisplayPort
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTEÃ I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	Support for Q-Flash
	Support for Q-Flash Plus
	Support for Smart Backup
Bundled Software	NortonÃ Internet Security (OEM version)
Bundled Software	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Operating System	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
