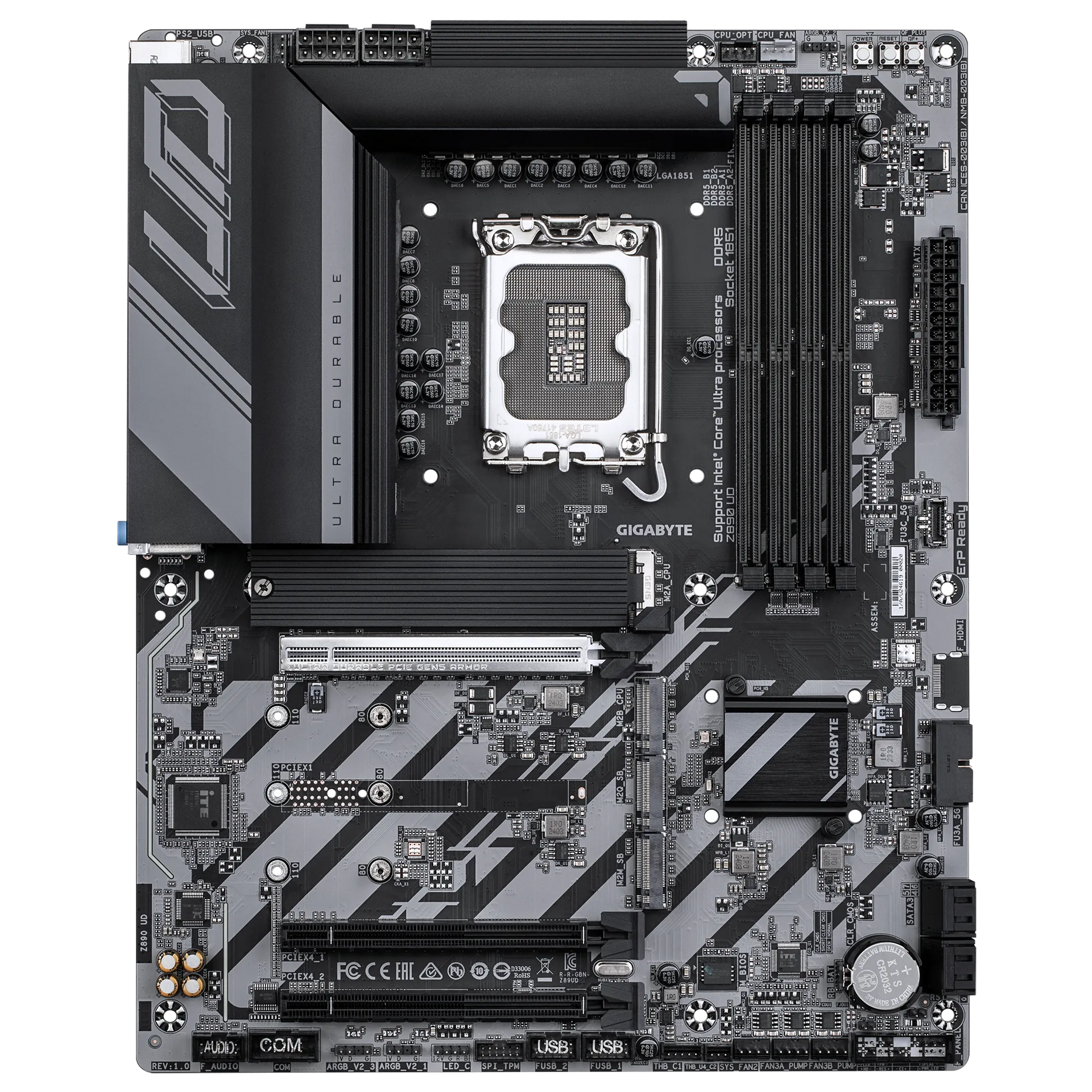

LGA1851 socket: Support for Intel® Core™ Ultra Processors
Chipset
Intel® Z890 Express Chipset
Memory
DDR5 9200(O.C.) and lower (various speeds up to 5600MT/s), up to 256 GB 4 x DDR5 DIMM sockets, ECC/non-ECC, XMP support
Onboard Graphics
Integrated Intel® HD Graphics - 1 x USB4® USB Type-C® (DisplayPort 2.1, 3840x2160@144Hz) - 1 x DisplayPort (DisplayPort 2.1, 3840x2160@144Hz)
Audio
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
LAN
Realtek® 2.5GbE LAN chip
Expansion Slots
CPU: 1 x PCIe 5.0 x16 (graphics card/NVMe SSD) Chipset: 2 x PCIe 4.0 x4 (PCIEX4_1, PCIEX4_2)
Storage
CPU: 1 x M.2 PCIe 5.0, 1 x M.2 PCIe 4.0 Chipset: 2 x M.2 PCIe 4.0/SATA, 4 x SATA 6Gb/s RAID 0/1/5/10 support for NVMe and SATA
USB Ports
- 1 x USB4® USB Type-C® (back panel) - 1 x USB Type-C® (internal, USB 3.2 Gen 1) - 1 x USB 3.2 Gen 2 Type-A (red, back panel) - 6 x USB 3.2 Gen 1 (4 back, 2 internal) - 8 x USB 2.0 (4 back, 4 internal)
Internal Connectors
- 1 x 24-pin ATX power, 2 x 8-pin ATX 12V - 4 x M.2 connectors, 4 x SATA 6Gb/s - USB headers, RGB/ARGB headers, fan/water pump headers - Trusted Platform Module (TPM) header, serial port header

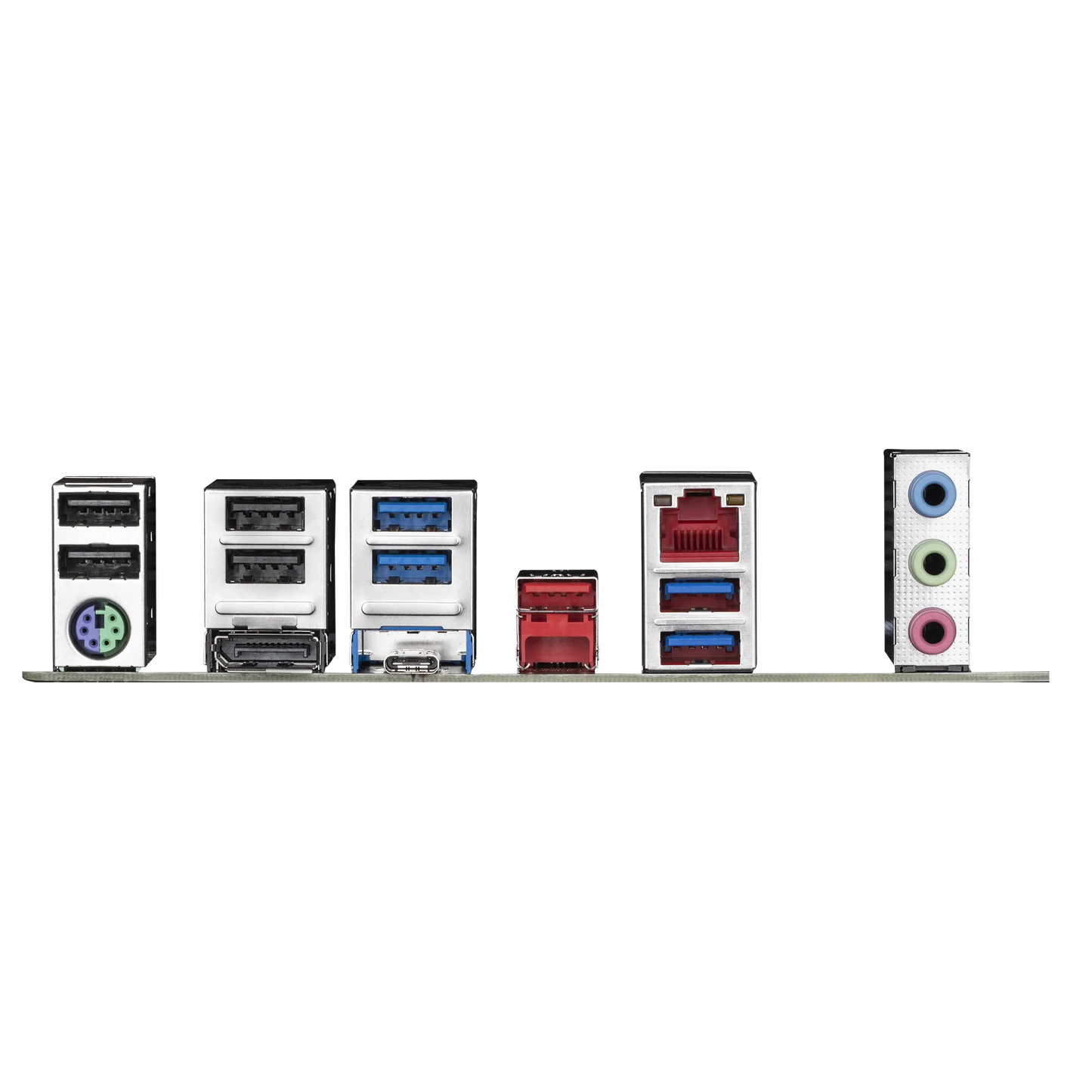

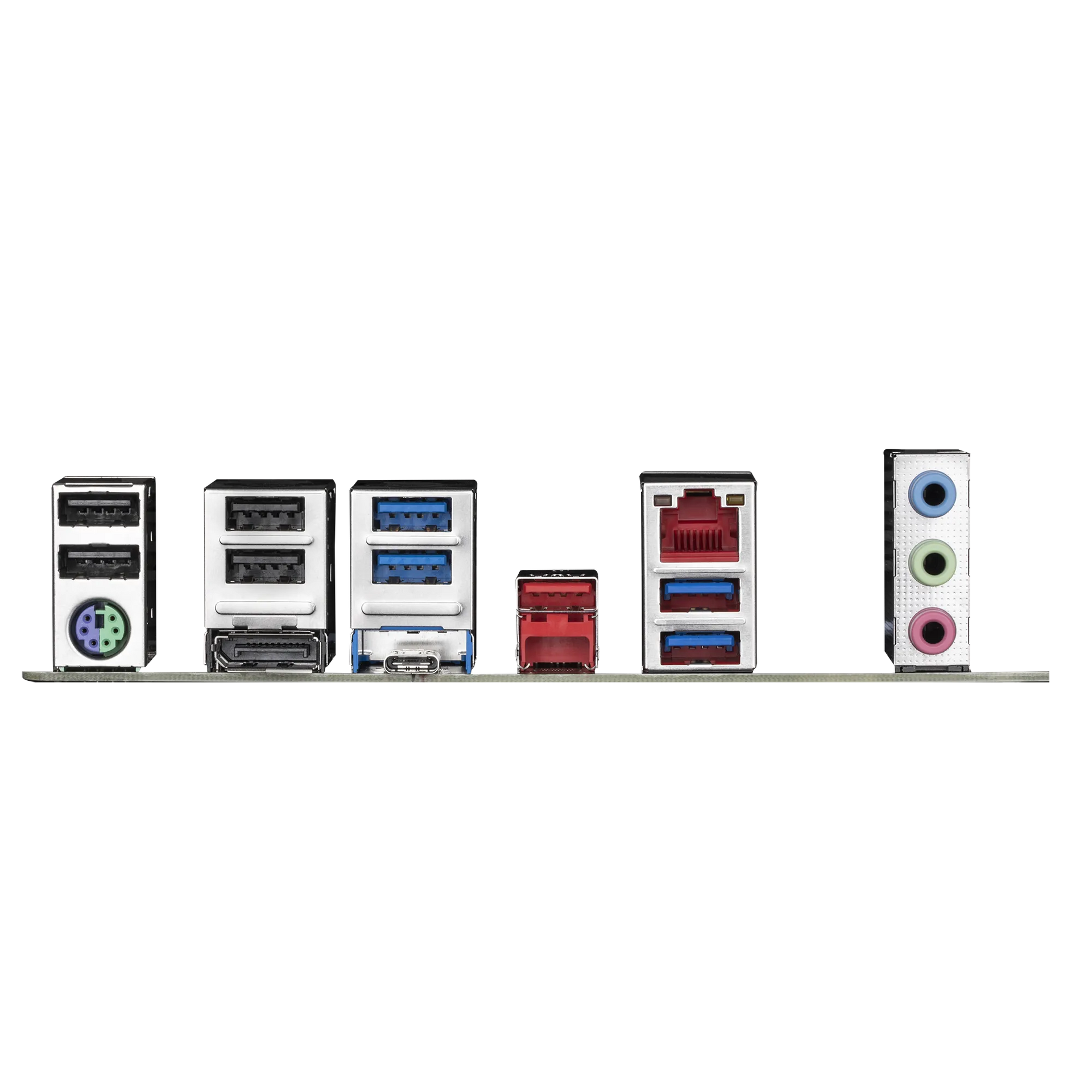

Back Panel
- 4 x USB 2.0, 4 x USB 3.2 Gen 1, 1 x USB4® USB Type-C® - 1 x USB 3.2 Gen 2 Type-A (red), 1 x DisplayPort - 1 x PS/2 keyboard/mouse port, 1 x RJ-45 LAN port - 3 x audio jacks
BIOS
256 Mbit AMI UEFI BIOS, Q-Flash, Q-Flash Plus
Operating System
Support for Windows 11 64-bit
Form Factor
ATX (30.5cm x 24.4cm)
Unique Features
GIGABYTE Control Center (GCC), Q-Flash, Smart Backup
Bundled Software
Norton® Internet Security (OEM), LAN bandwidth management software
