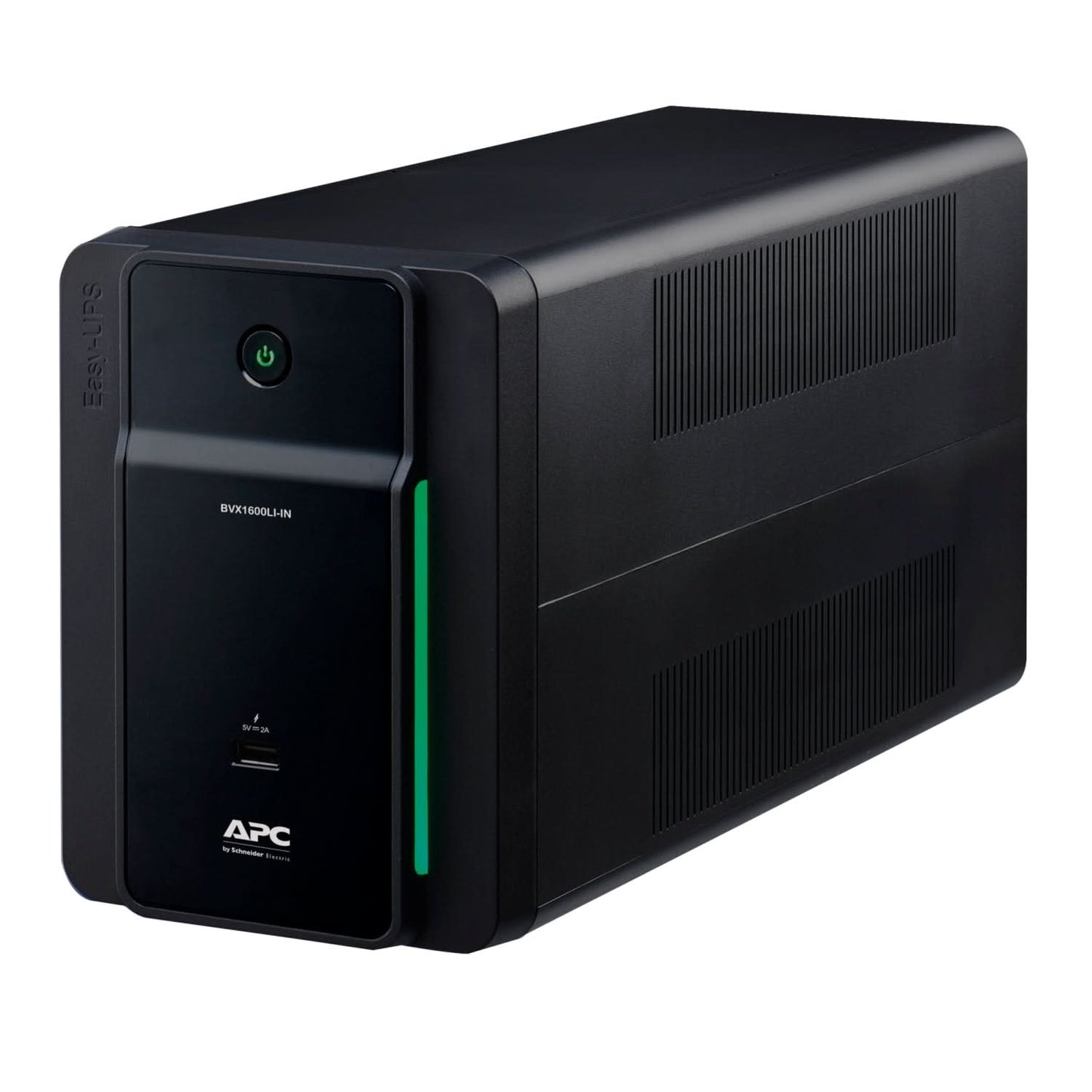

Power Capacity: 1600VA / 900W – ideal for home offices and small business setups.
Battery Backup: Provides 6.5 minutes at 50% load and 2.8 minutes at 75% load.
Surge Protection: All outlets protected with a 255 Joules surge rating.
USB Charging Port: 5V DC, 2A output for convenient smartphone and tablet charging.

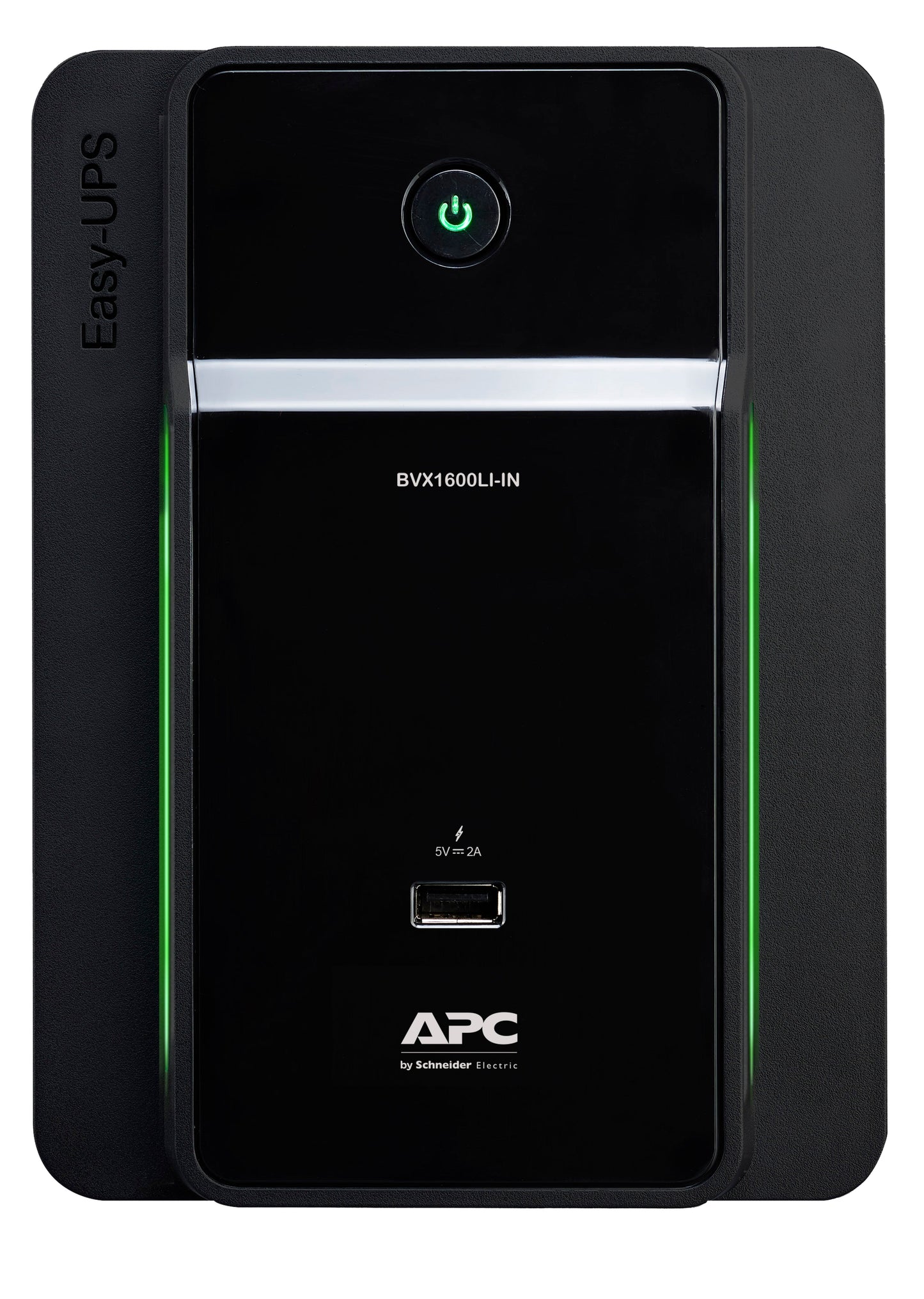

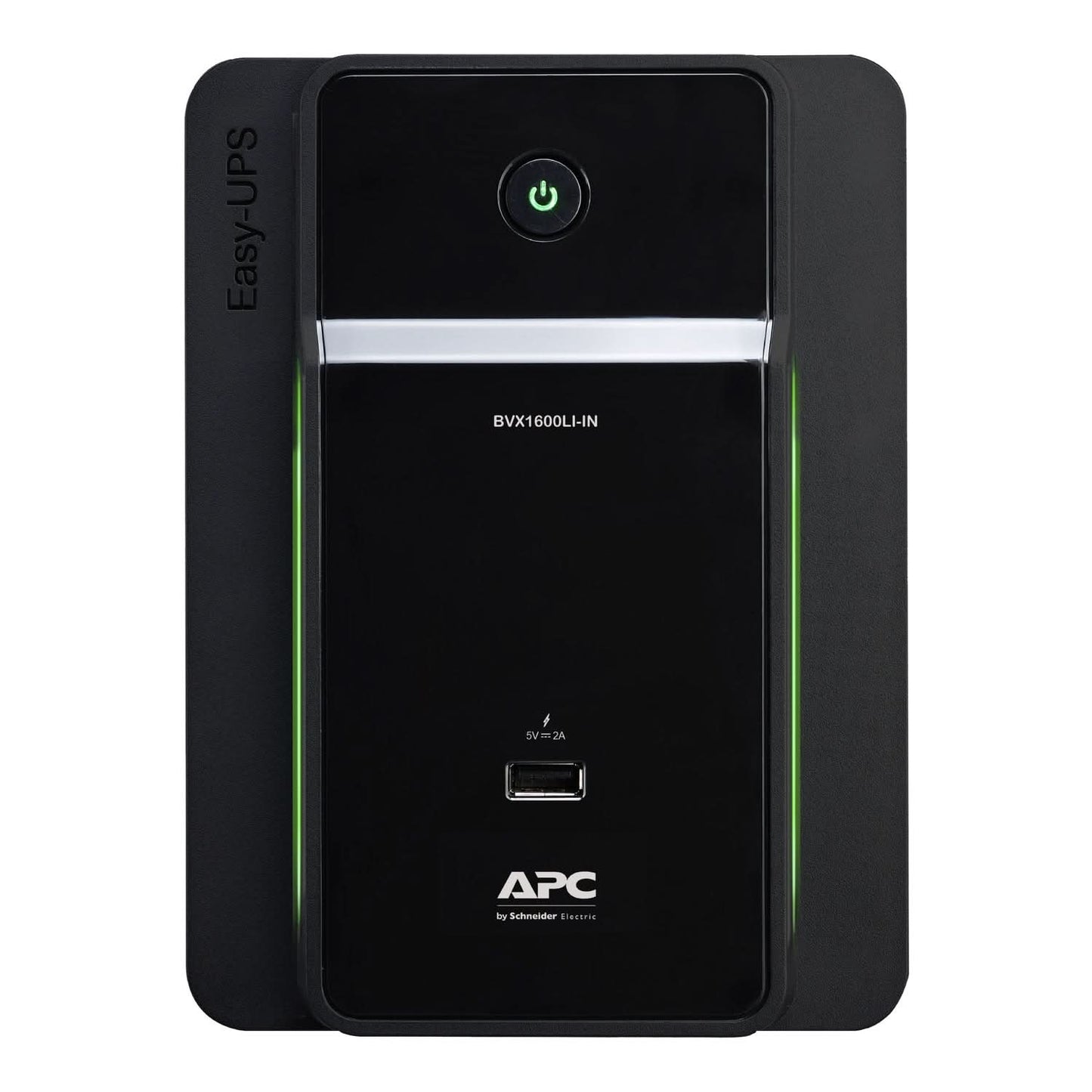

LED Indicators: Easy-to-read front panel LEDs for quick status checks.

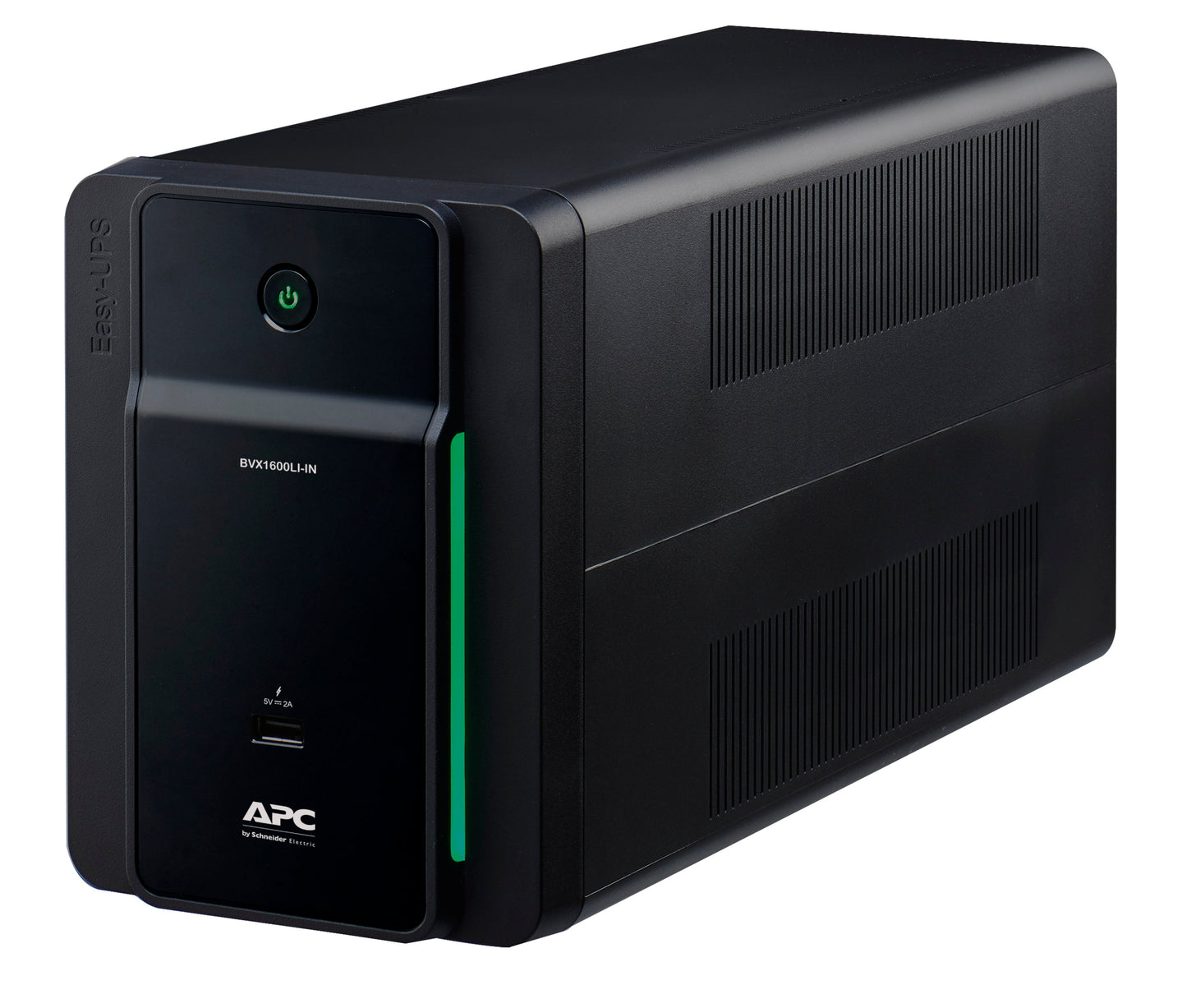

Compact Design: Space-saving dimensions (138 x 98 x 310 mm) for easy placement.
Input Voltage Range: Wide 140–300V range with automatic voltage regulation.
Output Waveform: Stepped approximation to sinewave for stable power delivery.
Recharge Time: 6 hours to recover 90% battery capacity.
Quiet Operation: Low noise level (<45 dBA) for a distraction-free environment.
Warranty: 2 years on UPS unit and 1 year on battery for added reliability.
| Category | Specification |
|---|---|
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Product Range | Easy UPS |
| Run Time for Load | 900 W |
| Min–Max Load Range | 90–900 W |
| Run Time Duration | 0 min 39 sec |
| Max. Capacity Used | 100% |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 230 V |
| Rated Power (W) | 900 W |
| Rated Power (VA) | 1600 VA |
| Maximum Configurable Power (W) | 900 W |
| Maximum Configurable Power (VA) | 1600 VA |
| Output Frequency | 50/60 Hz ±1 Hz unsynchronised |
| UPS Type | Line interactive |
| Waveform | Stepped approximation to a sinewave |
| Transfer Time | 6 ms typical / 10 ms maximum |
| Efficiency | View Efficiency Graph |

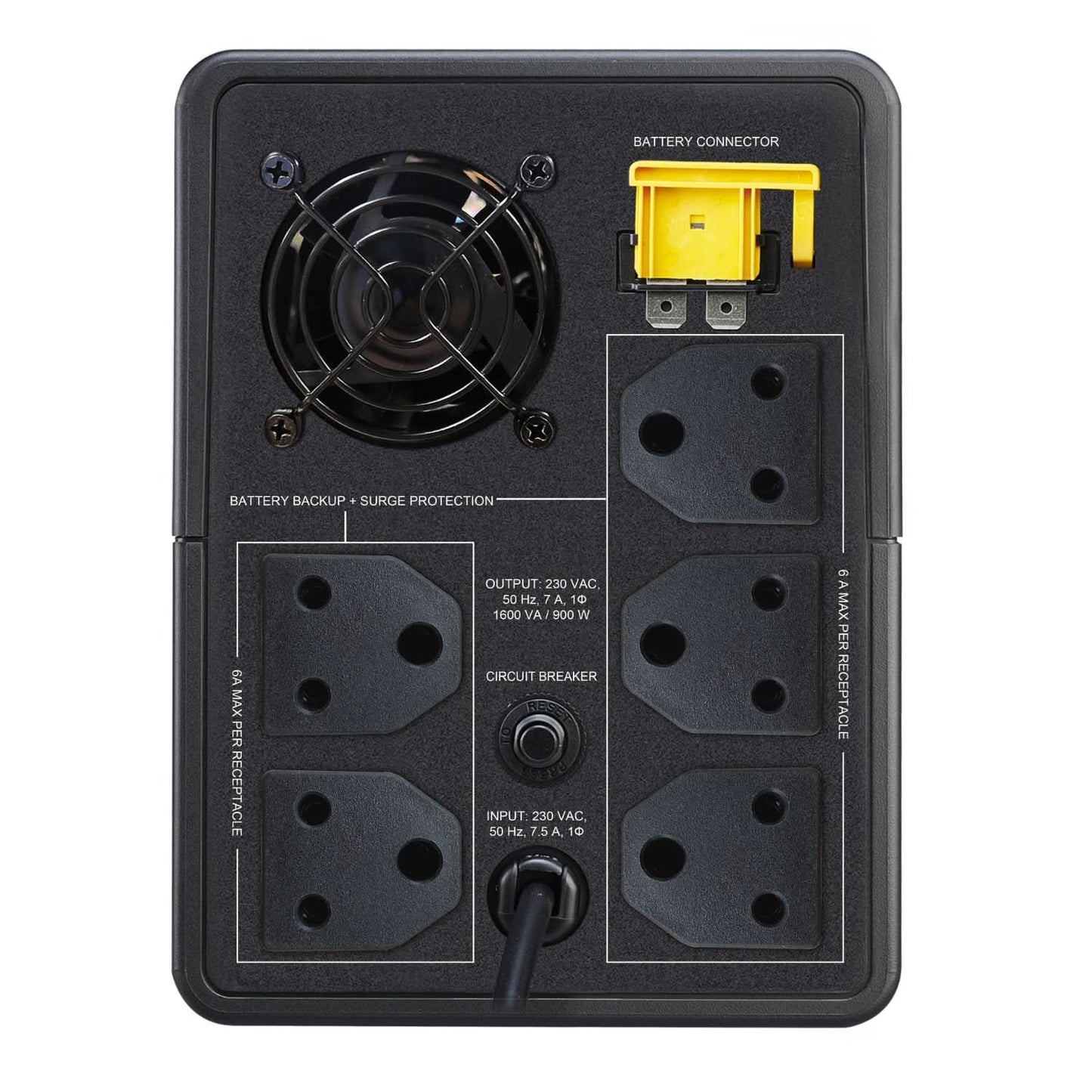

| Output Connection Type | 5x India 3-pin 6A |
| Cable Length | 1.2 m |
| Number of Cables | 1 |
| Battery Type | Lead-acid battery |
| Battery Voltage | 24 V |
| Battery Capacity | 7 Ah |
| Battery Recharge Time | 6 h |
| Extended Runtime Supported | No |
| Battery Slots (Filled / Free) | 0 / 0 |
| Graph Display | Yes |
| Battery Runtime Graph Note | View Runtime Graph |
| Provided Equipment | User manual |
| Power Module Slots (Free / Filled) | 0 / 0 |
| Redundant | No |
| UPS Size | WS |
| Colour | Black |
| Height | 19.0 cm |
| Width | 14.0 cm |
| Depth | 39.0 cm |
| Product Weight | 10.2 kg |
| Mounting Preference | No preference |
| Mounting Mode | Not rack-mountable |
| Two-Post Mountable | 0 |
| USB Compatible | No |
| Network Frequency | 40–70 Hz ±5 Hz auto-sensing |
| Plug Standard | India 3-pin 16A |
| Input Voltage Limits | 140–300 V |
| Input Protection Type | Circuit breaker |
| Operating Temperature | 0–40 °C |
| Operating Humidity | 0–95% non-condensing |
| Operating Altitude | 0–3000 m |
| Storage Temperature | -20–50 °C |
| Storage Humidity | 0–95% non-condensing |
| Storage Altitude | 0–15000 m |
| Acoustic Noise Level | 40 dBA |
| IP Degree of Protection | IP20 |
| Control Panel | LED status display with online, battery, replace battery, and overload indicators |
| Alarms | On battery, low battery, overload (distinctive tones) |
| Surge Energy Rating | 255 J |
| Package Type | PCE |
| Units per Package | 1 |
| Package Dimensions (H x W x L) | 29.7 cm x 49.5 cm x 23.5 cm |
| Package Weight | 11.2 kg |
| Warranty | 2 Years on UPS & 1 Year on Battery |
