Description
About the item
- High-Capacity Double-Conversion Power: 5kVA/5kW (Unity Power Factor) True On-Line UPS delivers premium, uninterrupted, and pure sine wave power, ideal for critical servers, data centers, and industrial applications.
- Exceptional Energy Efficiency: Operates at up to 94% efficiency in online mode and 97% in ECO mode, significantly reducing energy consumption and cooling costs for your business.
- Scalable Extended Runtime: Designed for long-duration backup, supporting external battery packs (SRV240RBP-9A) to provide up to 18 minutes at half load and 6 minutes at full load with one pack, offering flexible runtime expansion.
- Wide Voltage Adaptability: Features a wide input voltage range (176-300V full load, 110-300V half load), making it highly suitable for fluctuating power conditions, common in regions like Bengaluru, Karnataka.
- Comprehensive Management & Safety: Includes Hardwire connectivity, a multi-function LCD display, USB and RS-232 ports, and an Intelligent Slot for optional network management. Also features Emergency Power Off (EPO) and is generator compatible.
- BIS Certified Quality: BIS certified for safety and quality assurance, ensuring dependable performance in demanding critical environments.
- 2-Year Warranty: Backed by a comprehensive manufacturer's 2-year repair or replace warranty for long-term peace of mind and support.
Key Features:
-
Power Capacity: 5000 VA / 5000 W – unity power factor for maximum load support.
-
Topology: True double-conversion online – ensures clean, consistent power.
-
Input Voltage Range: 176–300V (full load), 110–300V (half load) – ideal for Indian power conditions.
-
Output Voltage: 230V (user-selectable 220V/240V) with pure sine wave output.
-
Extended Runtime: Up to 18 minutes at half load and 6 minutes at full load with one external battery pack.
-
Battery Support: Compatible with SRV240RBP-9A external battery packs; scalable runtime.
-
Recharge Time: 4 hours to 90% capacity.
-
Efficiency: Up to 94% in double-conversion mode, 97% in ECO mode – reduces energy and cooling costs.
-

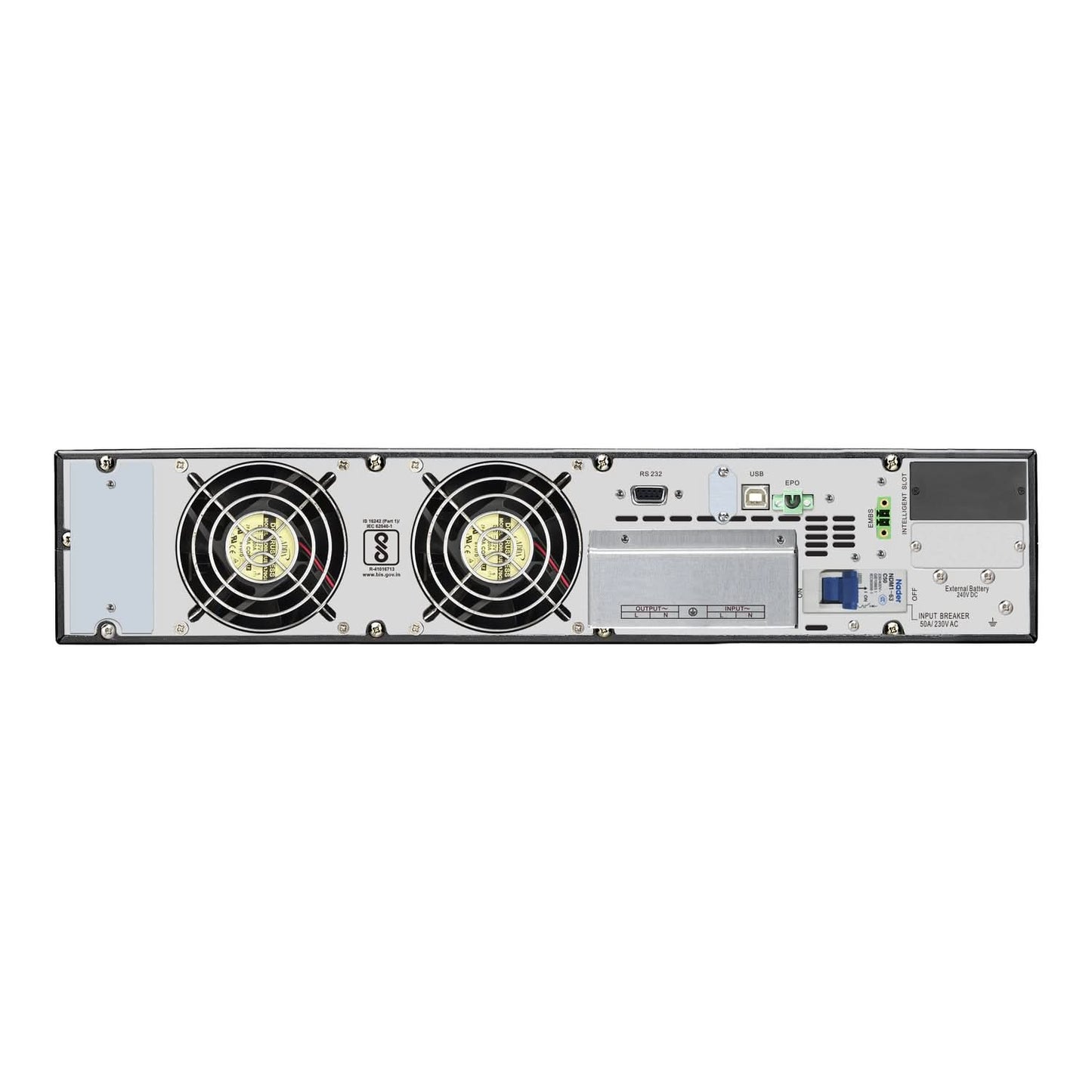

Connectivity: USB, RS-232, and intelligent slot for optional network management.
-

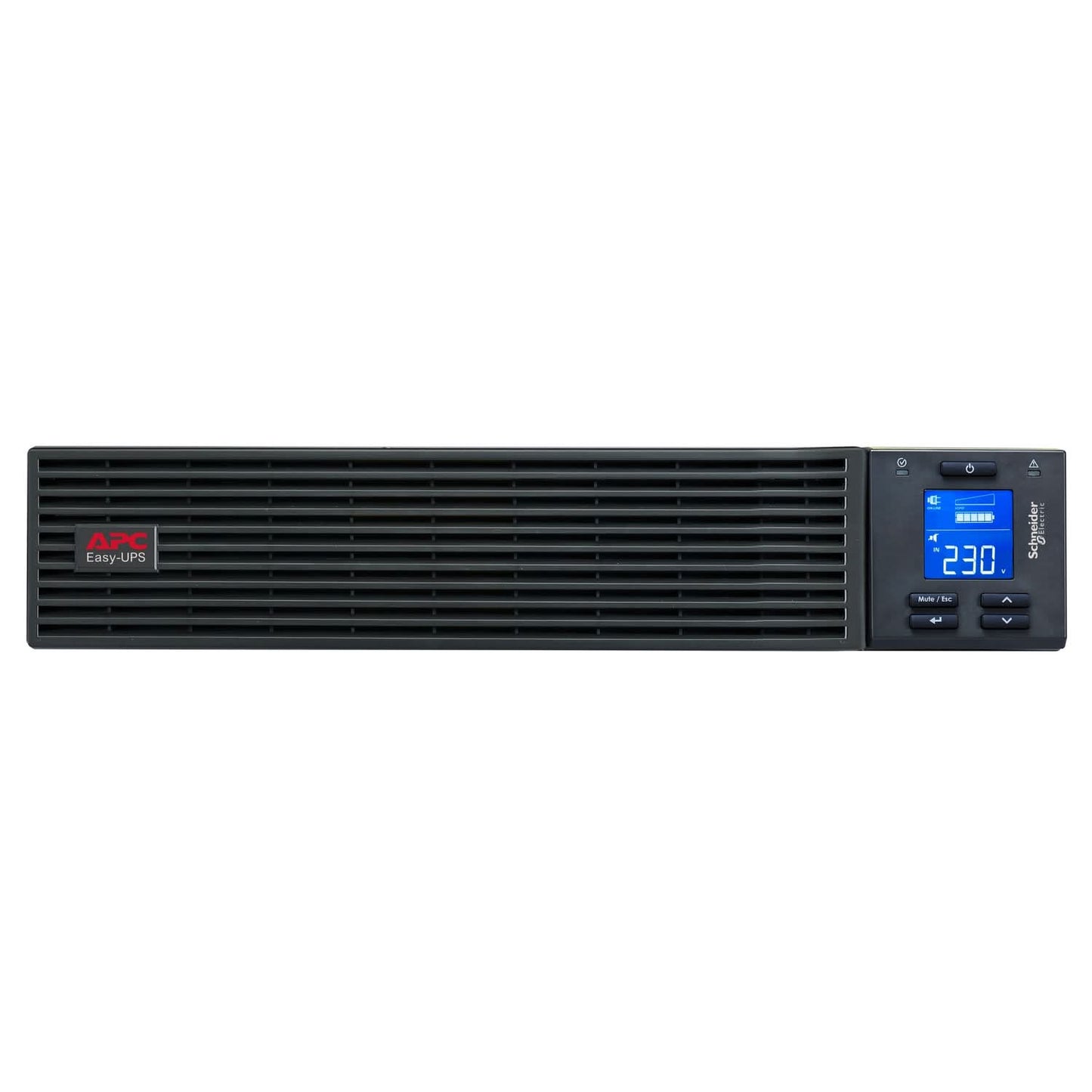

Display: Multi-function LCD with LED indicators for real-time system status.
-
Safety: Emergency Power Off (EPO) with NC contacts.
-

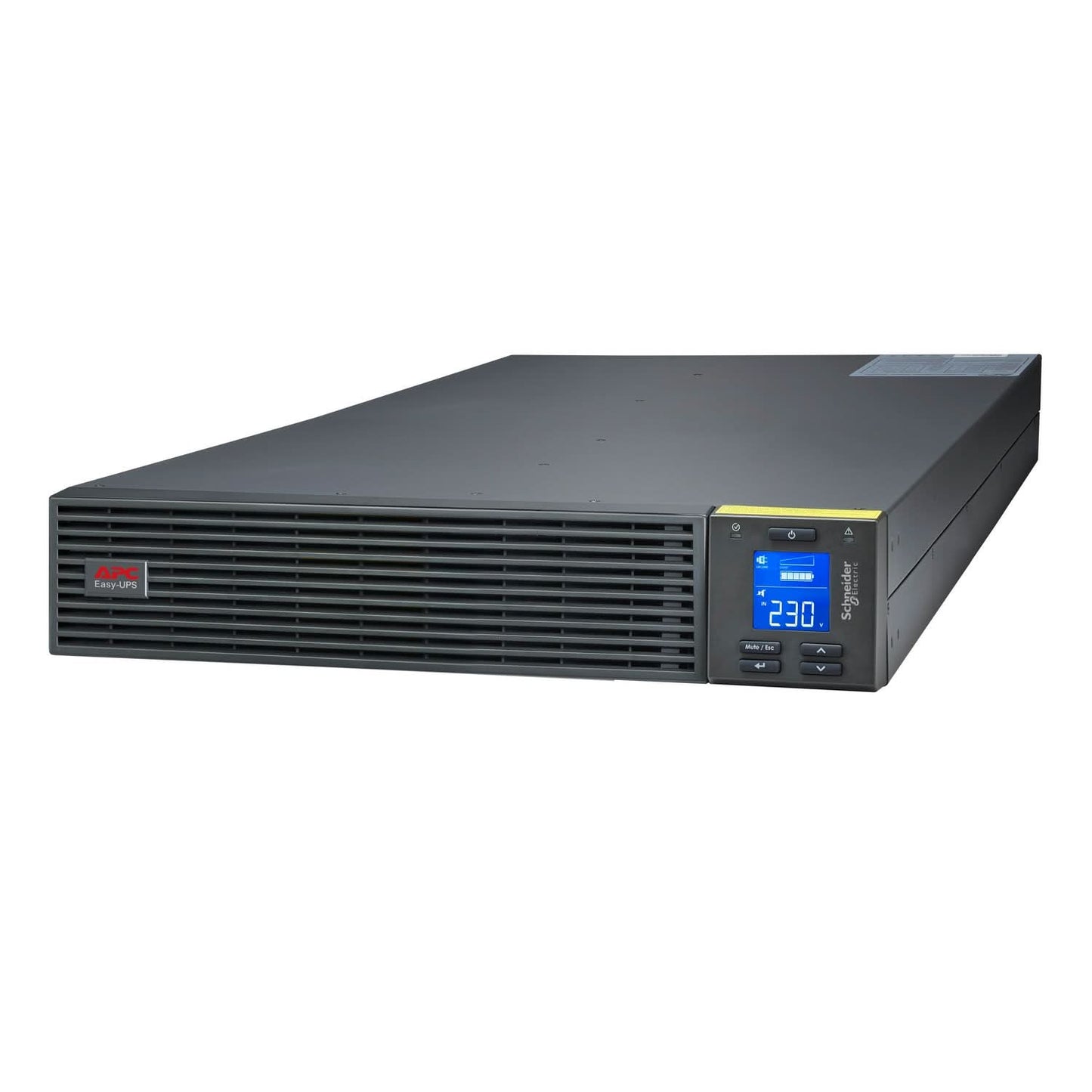

Design: Rack-mountable 5U form factor; dimensions: 438 x 86 x 615 mm (power module); weight: 15 kg.
-
Environment: Operates at 0–40°C, <60 dBA noise level, IP20 protection.
-
Certifications & Warranty: BIS certified; 2-year repair or replace warranty.
Specifications
Category | Details |
---|---|
Presentation | High quality, Double-conversion On-line UPS for essential power protection |
Lead Time | Usually in Stock |
Product Type | Uninterruptible Power Supply (UPS) |
Range of Product | Easy UPS On-Line |
Rated Power (W / VA) | 5000 W / 5000 VA |
Configurable Output Voltage | 220 V, 230 V, 240 V |
Main Output Voltage | 230 V |
Other Output Voltage | 220 V, 240 V |
Main Input Voltage | 230 V AC |
Other Input Voltage | 220 V, 240 V |
Input Voltage Limits | 110–300 V (half load), 176–300 V (full load) |
Input Frequency | 40–70 Hz auto sensing |
Input Connector Type | 1× Hard wire 3-wire (1P + N + E) |
Switching Current Capacity | 50 A |
Output Connector Type | 1× Hard wire 3-wire (1P + N + E) |
UPS Type | Double Conversion Online |
Waveform | Pure Sine Wave |
Bypass Type | Internal (Automatic and Manual) |
Crest Factor | 3:1 |
Harmonic Distortion | ≤ 1% |
Output Frequency | 50/60 Hz ±3 Hz (sync to mains) |
Efficiency (Full Load) | 94% |
Battery Type | External battery system (not included) |
Battery Voltage | 240 V |
Battery Charger Power | 1170 W rated |
Extended Runtime Support | Yes |
Battery Slots (Filled / Free) | 0 / 0 |
Included Equipment | USB cable, RS-232 cable, rack mount brackets, wall mount feet, battery cable, user manual |
Mounting Mode | Rack-mounted with kit |
Mounting Units | 2U |
Mounting Location | Front |
Mounting Position | Horizontal |
Mounting Preference | Lower |
Color | Black (RAL 7010) |
USB Compatible | No |
Control Panel | Multifunction LCD status and control console |
Alarm Types | Audible & visible alarms (battery, low battery, overload) |
Surge Energy Rating | 600 J |
Acoustic Noise Level | 55 dBA |
Heat Dissipation | 1172 BTU/h |
IP Rating | IP20 |
Operating Temperature | 0–40 °C |
Storage Temperature | -20–60 °C |
Operating Altitude | 0–3000 m |
Storage Altitude | 0–15000 m |
Relative Humidity (Op/Storage) | 0–95% non-condensing |
Package Dimensions (H×W×L) | 24 × 76 × 60 cm |
Package Weight | 18 kg |
Product Weight | 15 kg |
Warranty | 2 Years Repair or Replace |
