Description

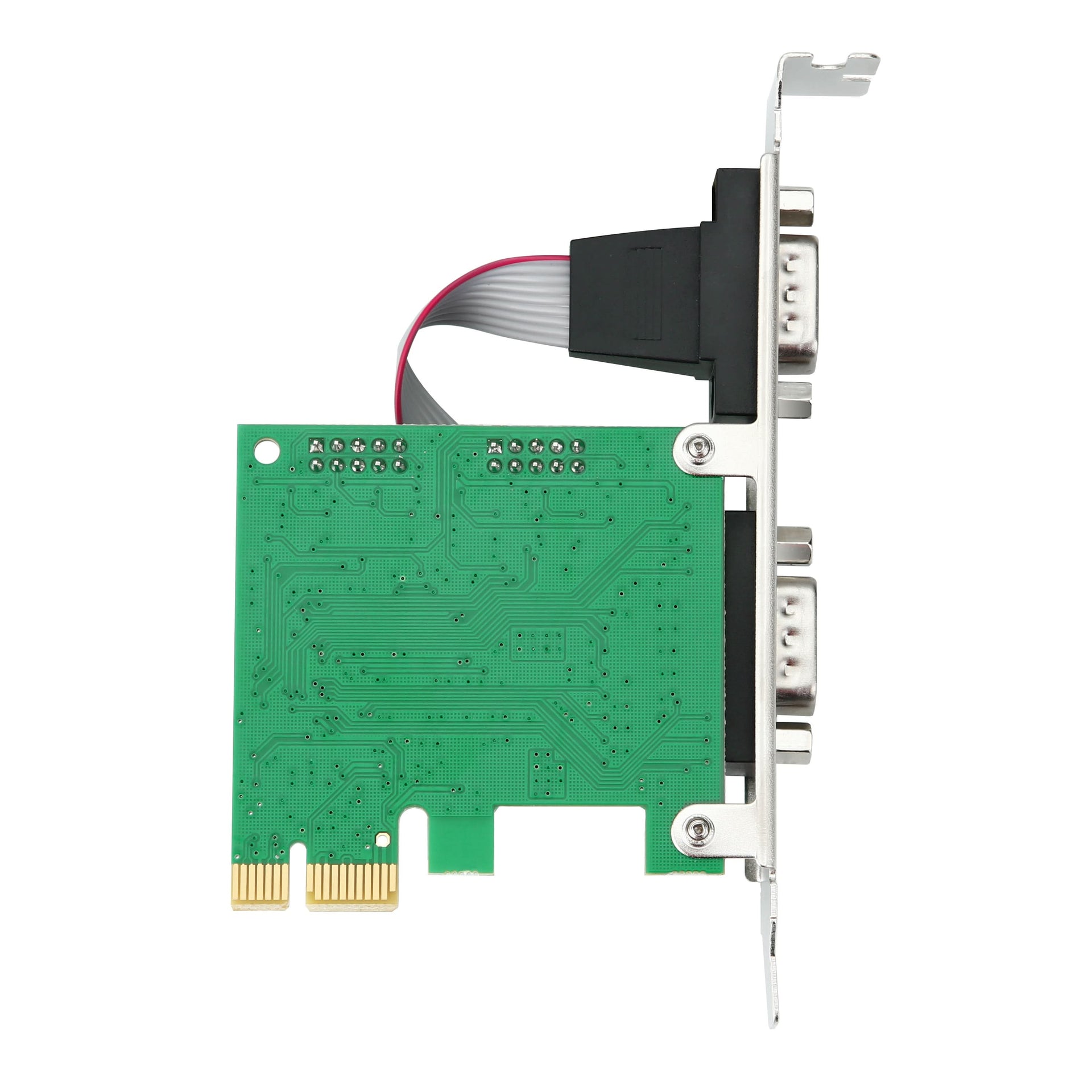

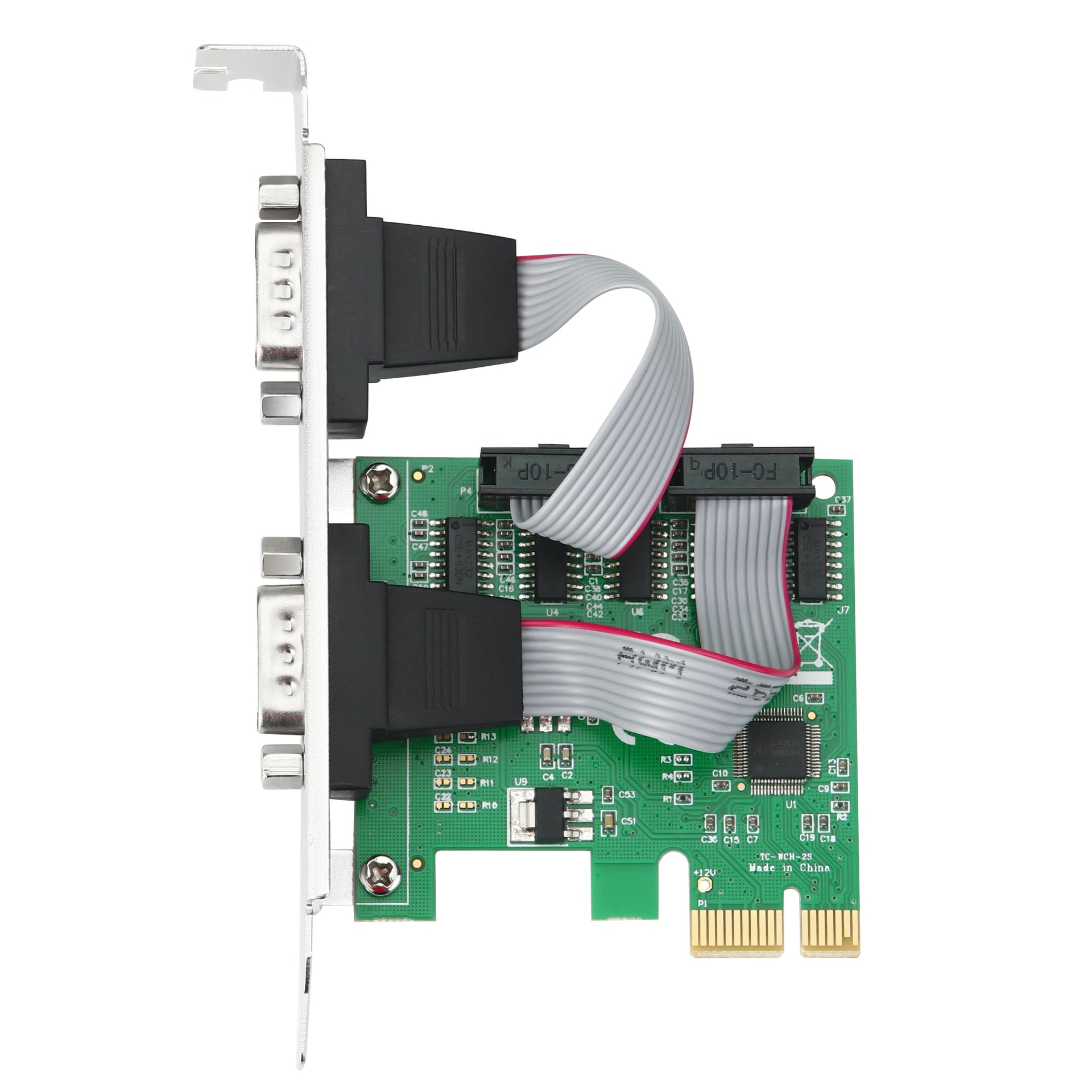

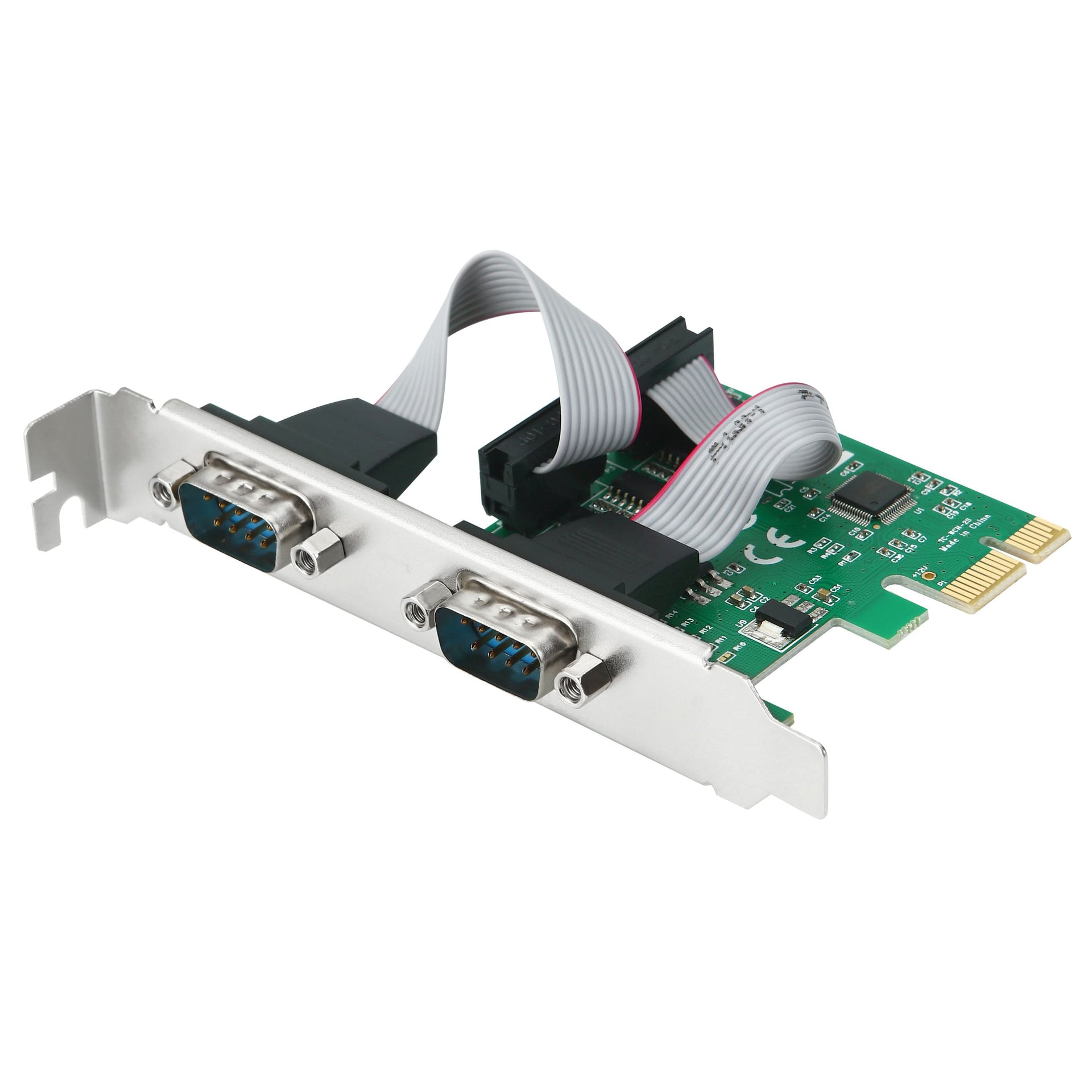

S-Tech PCIe Dual Port RS-232 Serial Card
The S-TECH STC-CH382-2S is a dual-port RS-232 serial expansion card based on the
WCH CH382L PCI Express controller. It adds two independent serial ports to desktop
computers, workstations, servers, industrial PCs and embedded systems.
Designed for reliable serial communication, the adapter is suitable for connecting legacy and
industrial equipment such as POS systems, barcode scanners, modems, CNC machines, data
acquisition equipment and other RS-232 peripherals.
PRODUCT FEATURES
• Dual-port RS-232 serial expansion
• Based on WCH CH382L PCI Express controller
• Two independent UART channels
• 256-byte FIFO buffer per serial port
• Supports high-speed serial communication up to 8 Mbps
• Hardware and software flow control support
• PCI Express x1 interface
• Full-height bracket installed; Low-profile bracket included
Specifications:
| Product Name | STC-WCH2S |
| Product Collection | S-TECH PCI Express Serial Adapter |
| Category | I/O Cards |
| Controller | WCH CH382L |
| Bus Type / Bus Width | PCI Express x1 |
| PCIe Specification | PCI Express 1.1 |

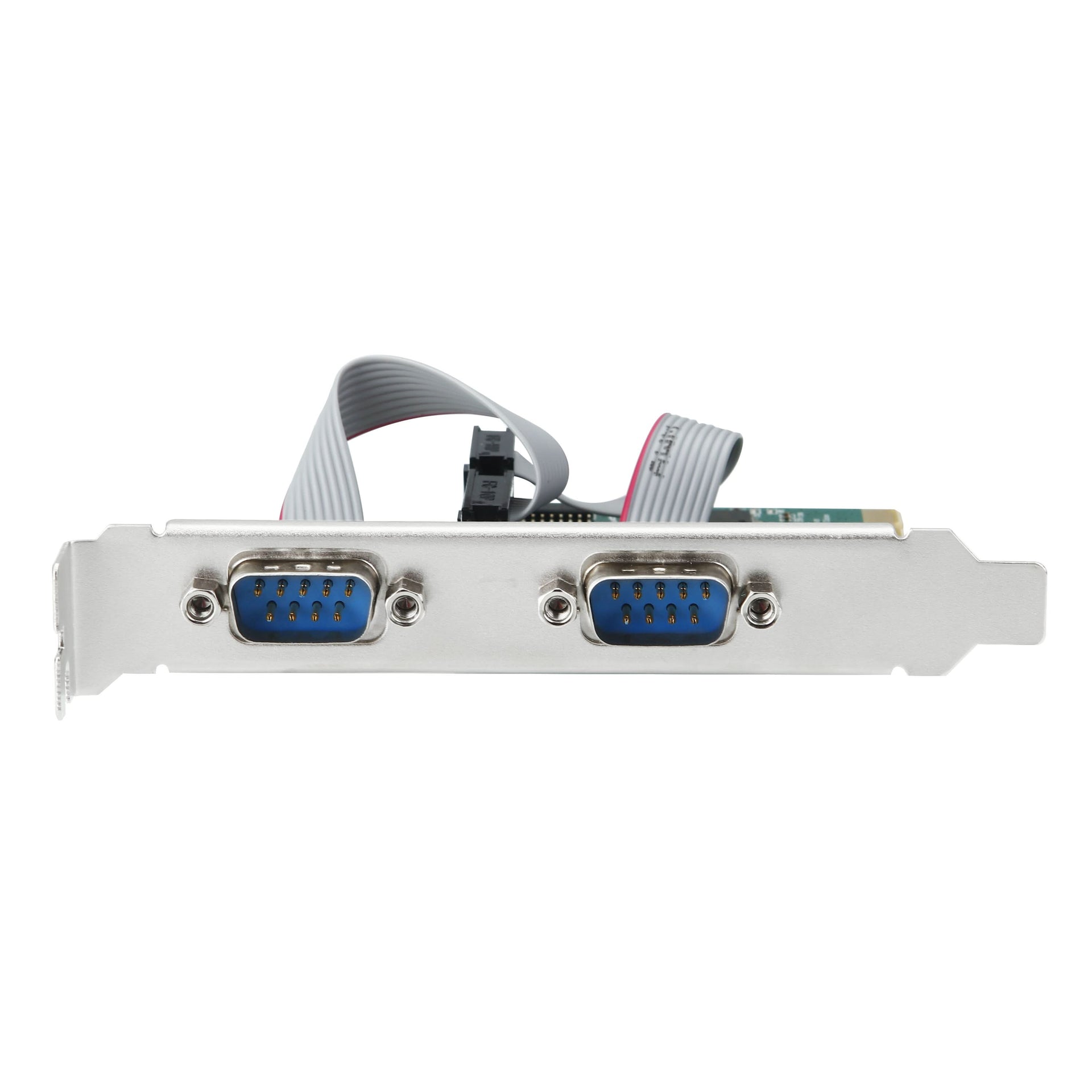

| Connections | 2 × RS-232 DB9 Male |
| UART | 16C550 / 16C750 Compatible |
| FIFO | 256 Bytes per Port |
| Maximum Baud Rate | Up to 8 Mbps |
| Signal Lines | TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, GND |
| Data Bits | 5 / 6 / 7 / 8 |
| Stop Bits | 1/2 |
| Parity | None / Even / Odd / Mark / Space |
| Flow Control | Hardware / Software |
| Hardware Flow Control | RTS / CTS |
| Software Flow Control | XON / XOFF |
| Port Configuration | 2 Independent Serial Ports |
| Connector | DB9 Male |
| Interrupt Support | MSI / MSI-X |
| Bracket | Full Height Installed, Low Profile Included |
| Operating System | Windows® 11 / 10 / 8.1 / 8 / 7 Windows Server® 2022 / 2019 / 2016 / 2012 / 2008 Supported Linux distributions with WCH CH382 driver |
| Operating Temperature | -40°C to 85°C* |
| Storage Temperature | -40°C to 85°C* |
| Power Supply | 3.3V |
| Power Consumption | Low Power Design |
| Bracket | Full Height Installed, Low Profile Included |
| Certifications | CE, FCC, RoHS |
| Warranty | 1 Year |
