| Feature | ASRock USB 3.2 Gen2 |
| - ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) |
| - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) |
| - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) |
| ASRock Super Alloy |
| - XXL Aluminum Alloy Heatsink |
| - Premium 60A Power Choke |
| - 50A Dr.MOS |
| - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) |
| - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) |
| - I/O Armor |
| - Matte Black PCB |
| - High Density Glass Fabric PCB |
| - 2oz Copper PCB |
| IntelÆ 2.5G LAN |
| IntelÆ 802.11ax WiFi |
| ASRock Steel Slot Gen4 |
| ASRock Full Coverage M.2 Heatsink |
| ASRock Hyper M.2 (PCIe Gen4x4) |
| ASRock Ultra USB Power |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) |
| ASRock Live Update & APP Shop |
| CPU | - Supports AMD AM4 Socket Ryzenô 3000, 4000 G-Series and 5000 Series Desktop Processors* |
| - Digi Power design |
| - 16 Power Phase design |
*Not compatible with AMD Ryzenô 5 3400G and Ryzenô 3 3200G. |
| Chipset | - AMD B550 |
| Memory | - Dual Channel DDR4 Memory Technology |
| - 4 x DDR4 DIMM Slots |
| - AMD Ryzen series CPUs (Matisse) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* |
| - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* |
| - Max. capacity of system memory: 128GB** |
| - Supports Extreme Memory Profile (XMP) memory modules |
| - 15? Gold Contact in DIMM Slots |
| **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under WindowsÆ 32-bit OS. For WindowsÆ 64-bit OS with 64-bit CPU, there is no such limitation. |
| Graphic | - Integrated AMD Radeonô Vega Series Graphics in Ryzen Series APU* |
| - DirectX 12, Pixel Shader 5.0 |
| - Shared memory default 2GB. Max Shared memory supports up to 16GB.** |
| - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers |
| - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz |
| - Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz |
| - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) |
| - Supports HDR (High Dynamic Range) with HDMI 2.1 |
| - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports |
| - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports |
| - Supports MicrosoftÆ PlayReady |
*Actual support may vary by CPU |
| **The Max shared memory 16GB requires 32GB system memory installed. |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| - Supports "Plug and Play" |
| - ACPI 5.1 compliance wake up events |
| - Supports jumperfree |
| - SMBIOS 2.3 support |
| - CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
| - Premium Blu-ray Audio support |
| - Supports Surge Protection |
| - 120dB SNR DAC with Differential Amplifier |
| - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) |
| - Pure Power-In |
| - Direct Drive Technology |
| - PCB Isolate Shielding |
| - Impedance Sensing on Rear Out port |
| - Individual PCB Layers for R/L Audio Channel |
| - Gold Audio Jacks |
| - 15? Gold Audio Connector |
| - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| - GigaLAN IntelÆ I225V |
| - Supports Wake-On-LAN |
| - Supports Lightning/ESD Protection |
| - Supports Energy Efficient Ethernet 802.3az |
| - Supports PXE |
| Wireless LAN | - IntelÆ 802.11ax WiFi Module |
| - Supports IEEE 802.11a/b/g/n/ax |
| - Supports Dual-Band (2.4/5 GHz) |
| - Supports WiFi6 802.11ax (2.4Gbps) |
| - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology |
| - Supports Bluetooth 5.1 + High speed class II |
| - Supports MU-MIMO |
| Slots | AMD Ryzen series CPUs (Matisse) |
| - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE5))* |
| AMD Ryzen series APUs (Renoir) |
| - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen3x4 (PCIE5)) |
| - 2 x PCI Express 3.0 x1 Slots |
| - Supports AMD Quad CrossFireXô, 3-Way CrossFireXô and CrossFireXô |
| - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) |
| - 15? Gold Contact in VGA PCIe Slot (PCIE1) |
*If PCIE2 or PCIE4 is occupied, PCIE5 will downgrade to x2 mode. |
| Supports NVMe SSD as boot disks |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
| - 4 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug |
| - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)* |
| - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* |
*Supports NVMe SSD as boot disks |
| Supports ASRock U.2 Kit |
| Connector | - 1 x Power LED and Speaker Header |
| - 2 x RGB LED Headers* |
| - 2 x Addressable LED Headers** |
| - 1 x CPU Fan Connector (4-pin)*** |
| - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** |
| - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** |
| - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
| - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| - 1 x Front Panel Audio Connector (15? Gold Audio Connector) |
| - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) |
| - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) |
| - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) |
| - 1 x Dr. Debug with LED |
| - 1 x Power Button with LED |
| - 1 x Reset Button with LED |
| - 1 x Clear CMOS Button |
*Support in total up to 12V/3A, 36W LED Strip |
| **Support in total up to 5V/3A, 15W LED Strip |
| ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. |
| ***CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power. |
| ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. |
| CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use. |

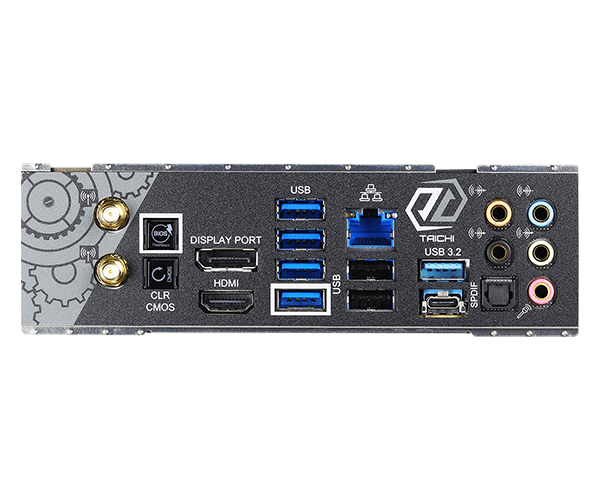

| Rear Panel I/O | - 2 x Antenna Ports |
| - 1 x HDMI Port |
| - 1 x DisplayPort 1.4 |
| - 1 x Optical SPDIF Out Port |
| - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) |
| - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) |
| - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)* |
| - 2 x USB 2.0 Ports (Supports ESD Protection) |
| - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| - 1 x Clear CMOS Button |
| - 1 x BIOS Flashback Button |
| - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
*Ultra USB Power is supported on USB3_1_2 ports. |
| ACPI wake-up function is not supported on USB3_1_2 ports. |
| Software and UEFI | Software |
| - ASRock Motherboard Utility (A-Tuning) |
| - ASRock Polychrome SYNC |
| - ASRock XFast LAN |
| UEFI |
| - ASRock Full HD UEFI |
| - ASRock Instant Flash |
*These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |

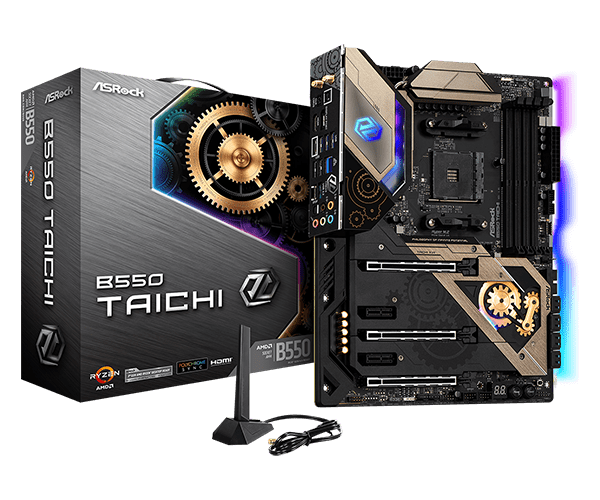

| Accessories | - Quick Installation Guide, Support CD |
| - 4 x SATA Data Cables |
| - 1 x ASRock WiFi 2.4/5 GHz Antenna |
| - 1 x ASRock Screwdriver |
| - 2 x Screws for M.2 Sockets |
| - 2 x Standoffs for M.2 Sockets |
| Hardware Monitor | - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
| - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
| - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans |
| - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
| - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, CPU VDD 1.8V |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| - 2oz Copper PCB |
| OS | - MicrosoftÆ WindowsÆ 10 64-bit |
| Certifications | - FCC, CE |
| - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
