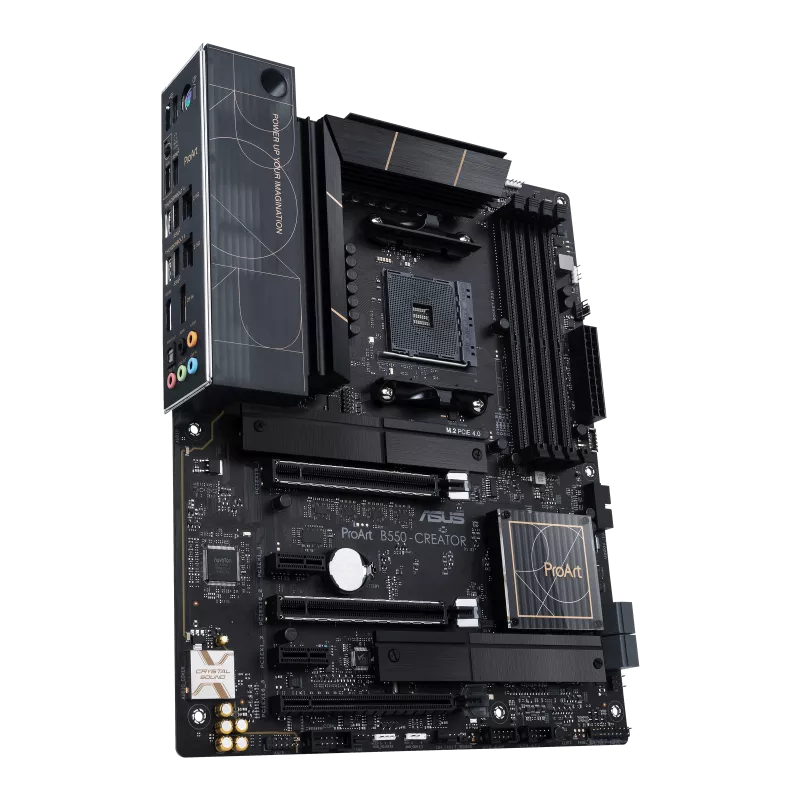

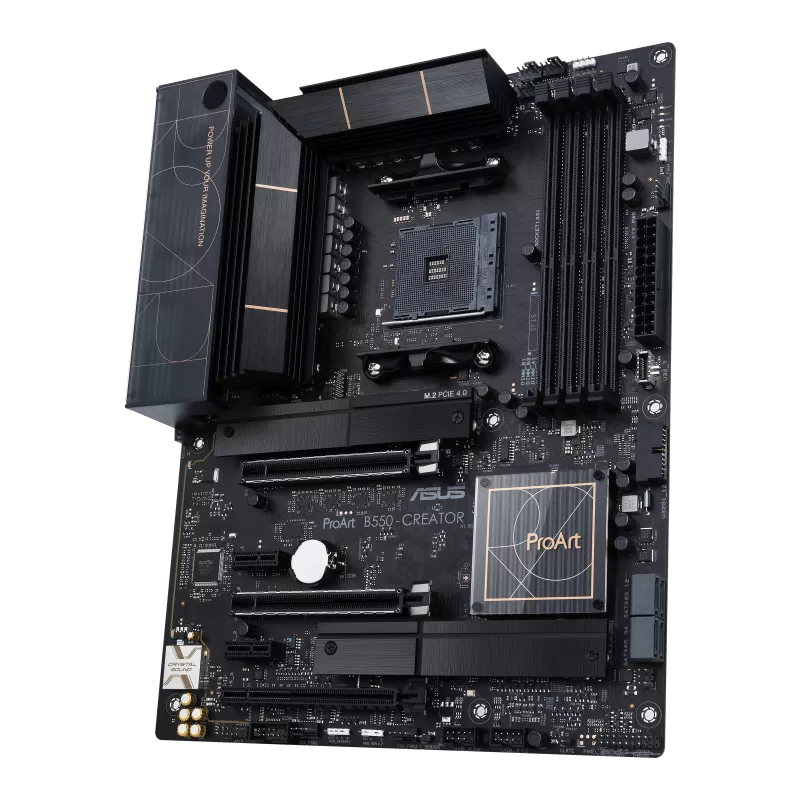

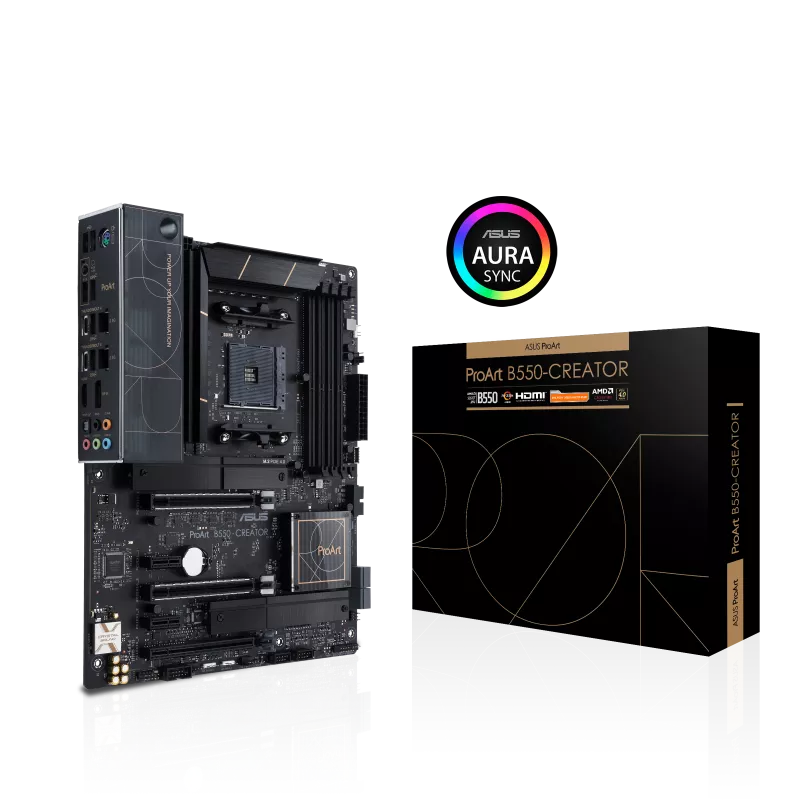

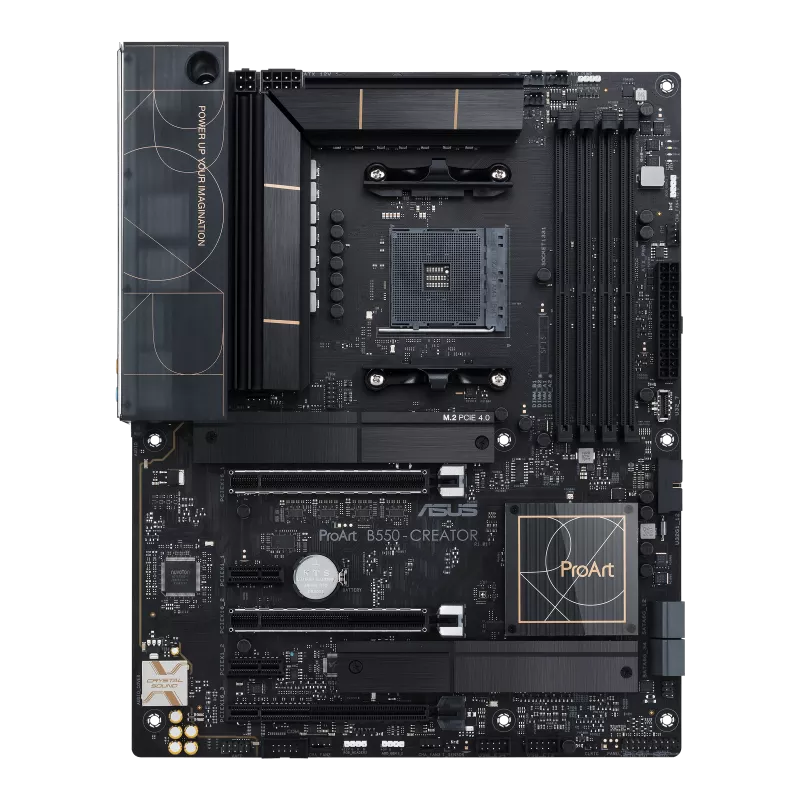

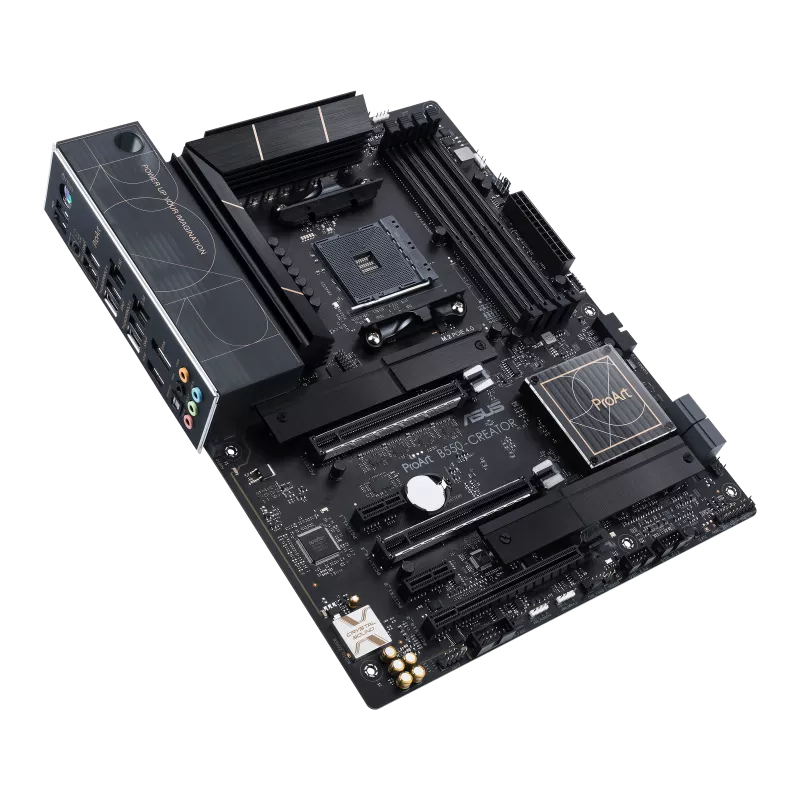

ASUS PROART B550 CREATOR AMD AM4 MOTHERBOARD

Name: ASUS PROART B550 CREATOR AMD AM4 MOTHERBOARD
Brand: Asus
SKU: 1083214
Price: 20000.0 INR
Availability: OutOfStock

Rs. 20,000.00 Rs. 31,999.00

Discount: Rs. 11,999.00 (38%)

14 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: Dec 27 - Dec 31

Availability: In Stock Unavailable

SKU: 1083214

Vendor: Asus

Guaranteed safe & Secure checkout

Description
Shipping & Return

ProArt B550-CREATOR_One Page Spec
CPU	AMD AM4 Socket for AMD Ryzenô 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Processors *
CPU	* Refer to www.asus.com for CPU support list.
Chipset	AMD B550 Chipset
Memory	AMD Ryzenô 5000 Series/ 3000 Series Desktop Processors
	4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *
	AMD RyzenTM 4000 G-Series Processors
	4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
	OptiMem II
	Dual Channel Memory Architecture
	ECC Memory (ECC mode) support varies by CPU.
	* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics	1 x HDMIô 2.1(4K@60HZ)
	2 x IntelÆ Thunderboltô 4 ports (USB Type-CÆ) support DisplayPort 1.2/1.4 and Thunderboltô video outputs *
	* Output at TBT4_E1 and TBT4_E2, the USB Type-CÆ ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. Graphics specifications may vary between CPU types.
	** VGA resolution support depends on processors' or graphic cards' resolution. For more details about the video input and output settings please refer to the user manul.
Expansion Slots	AMD Ryzenô 5000 Series/ 3000 Series Desktop Processors
	2 x PCIe 4.0 x16 (x16 or dual x8)*
	AMD RyzenTM 4000 G-Series Processor
	2 x PCIe 3.0 x16 (x16 or dual x8)*
	AMD B550 Chipset
	1 x PCIe 3.0 x16 slot (supports x4 mode)**
	2 x PCIe 3.0 x1 slots***
	* Support PCIe bandwidth bifurcation for RAID on CPU function.
	** PCIe 3.0 x4 will be switched from Thunderboltô 4 to PCIEX16_3 if the slot is populated; by then Thunderboltô 3 will have no output
	*** These PCIe x1 slots share bandwidth with M.2_2, which runs at PCIe 3.0 x4 by default. You may go to BIOS setting to set M.2_2 to PCIe 3.0 x4 or x2 at will
Multi-GPU Support	Supports AMD 3-Way/2-Way CrossFireXô Technology
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
	AMD Ryzenô 5000 Series/ 3000 Series Desktop Processors :
	M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
	AMD RyzenTM 4000 G-Series Processor :
	M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
	AMD B550 Chipset
	M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
	4 x SATA 6Gb/s ports
	Supports RAID 0, 1, 10
Ethernet	2 x IntelÆ I225-V 2.5Gb Ethernet
Ethernet	ASUS LANGuard
USB	Rear USB (Total 8 ports)
	2 x Thunderboltô 4 port(s) (2 x USB Type-CÆ) with up to 5V/3A, 15W charging support
	4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
	2 x USB 2.0 port(s) (2 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 3.2 Gen 1 connector (support(s) USB Type-CÆ)
	1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*
	Audio Features
	- Power pre-regulator reduces power input noise to ensure consistent performance
	- Rear optical S/PDIF out port
	- Premium Japanese audio capacitors
	- Dedicated audio PCB layers
	- Audio cover
	- Unique de-pop circuit
	* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

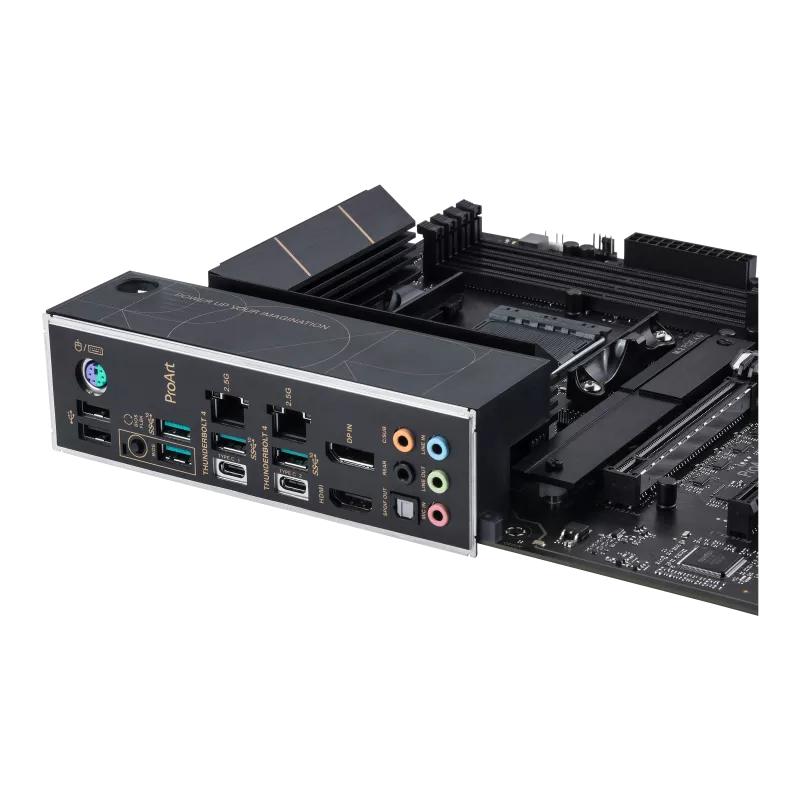

Back Panel I/O Ports	2 x Thunderboltô 4 USB Type-CÆ port(s)
	4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
	2 x USB 2.0 port(s) (2 x Type-A)
	1 x DisplayPort (Input only)
	1 x HDMIô port
	2 x IntelÆ I225-V 2.5Gb Ethernet ports
	5 x Audio jacks
	1 x Optical S/PDIF out port
	1 x BIOS FlashBackô button
	1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header(s)
	1 x 4-pin CPU OPT Fan header(s)
	1 x 4-pin AIO Pump header(s)
	4 x 4-pin Chassis Fan header(s)
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
	Storage related
	2 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 1 connector (support(s) USB Type-CÆ)
	1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
	Miscellaneous
	2 x AURA Addressable Gen 2 header(s)
	2 x AURA RGB header(s)
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x Speaker header
	1 x SPI TPM header (14-1pin)
	1 x 20-5 pin System Panel header
	1 x Thermal Sensor header
Special Features	Extreme Engine Digi+
	- 5K Black Metallic Capacitors
	ASUS 5X PROTECTION III
	- DIGI+ VRM (- Digital power design with Dr. MOS)
	- Enhanced DRAM Overcurrent Protection
	- ESD Guards
	- LANGuard
	- Overvoltage Protection
	- SafeSlot Core
	- Stainless-Steel Back I/O
	ASUS Q-Design
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Latch
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsink
	- VRM heatsink design
	ASUS EZ DIY
	- BIOS FlashBackô button
	- BIOS FlashBackô LED
	- Box Headers
	- ProCool II
	- Pre-mounted I/O shield
	- SafeSlot
	AURA Sync
	- AURA RGB header(s)
	- Addressable Gen 2 RGB header(s)
	Bespoke Motherboard Design & Business Focused Features
	- 24/7 Reliability
	- Overcurrent Protection
Software Features	ASUS Exclusive Software
	Armoury Crate
	- AURA Creator
	- AURA Sync
	- Two-Way AI Noise Cancelation
	AI Suite 3
	- 5-Way Optimization by Dual Intelligent Processors 5
	TPU
	EPU
	Digi+ VRM
	Fan Xpert 4
	Turbo app
	- EZ update
	ASUS CPU-Z
	IT Management software supported
	- ASUS Control Center Express(ACCE)
	ProArt Creator Hub
	AI Charger
	DAEMON Tools
	Norton Anti-virus software (Free Trial version)
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

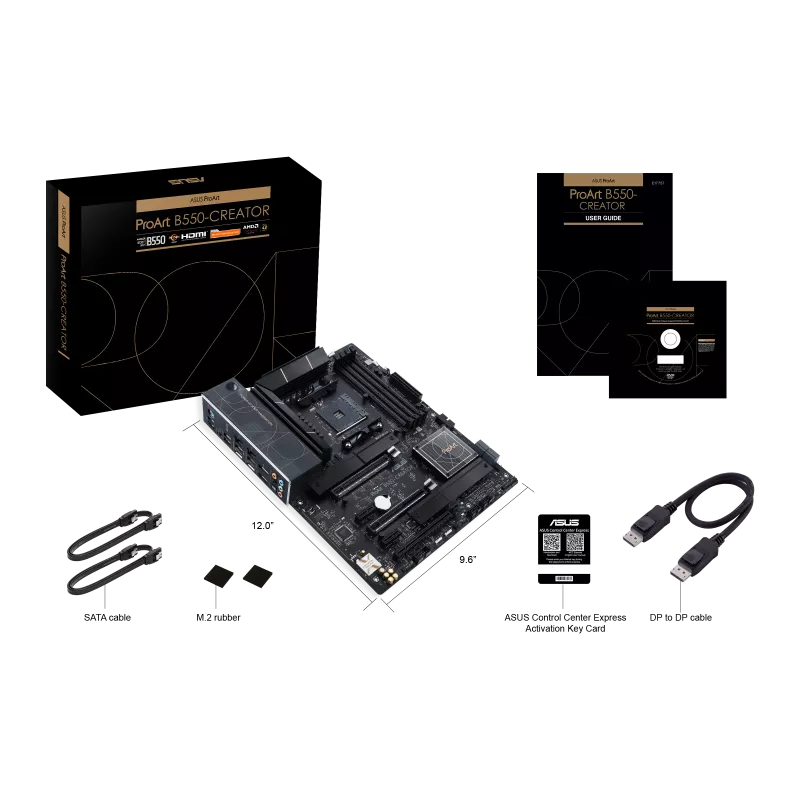

Accessories	Cables
	2 x SATA 6Gb/s cables
	1 x DP to DP cable for Thunderboltô 4
	Miscellaneous
	1 x M.2 Rubber Package(s)
	Installation Media
	1 x Support DVD
	Documentation
	1 x ACC Express Activation Key Card
	1 x User manual
Operating System	WindowsÆ 10 64-bit
Form Factor	ATX Form Factor
Form Factor	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
