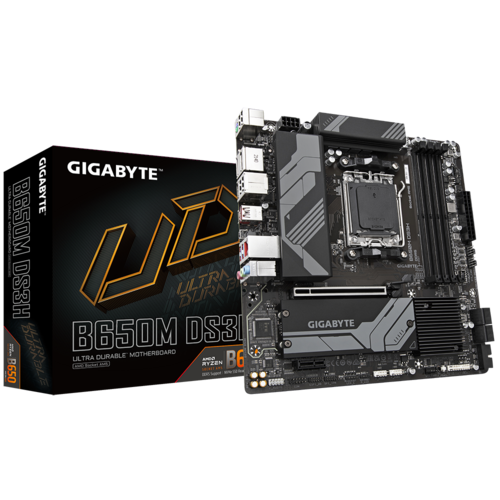

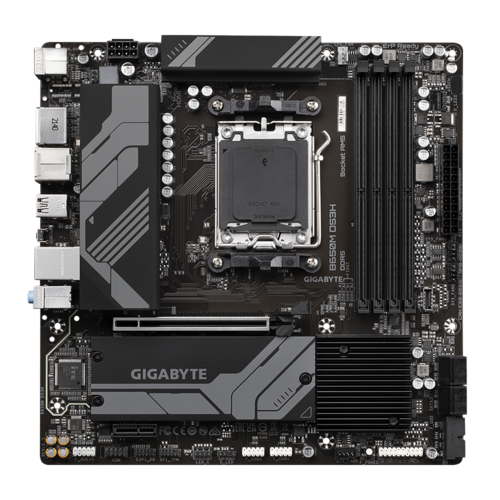

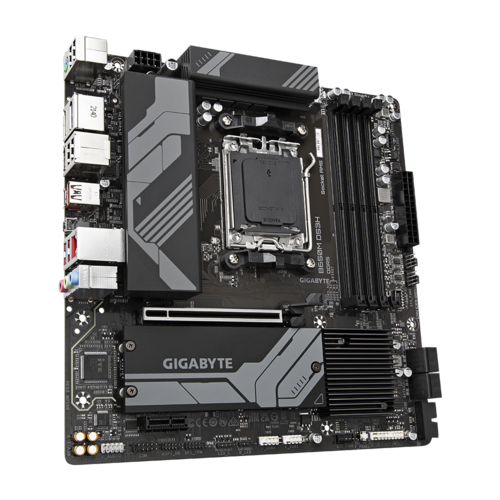

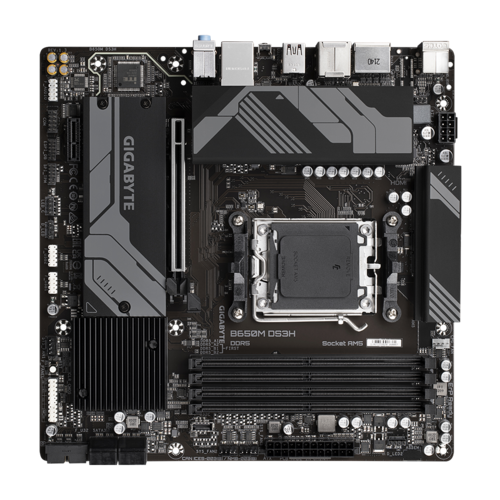

Gigabyte B650M-DS3H AMD AM5 Motherboard

Name: Gigabyte B650M-DS3H AMD AM5 Motherboard
Brand: Gigabyte
SKU: 1083197
Price: 14950.0 INR
Availability: OutOfStock

Rs. 14,950.00 Rs. 24,999.00

Discount: Rs. 10,049.00 (41%)

21 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: Jul 10 - Jul 14

Availability: In Stock Unavailable

SKU: 1083197

Vendor: Gigabyte

Guaranteed safe & Secure checkout

Description
Shipping & Return

CPU	AMD Socket AM5, support for: AMD Ryzenô 7000 Series Processors
Chipset	AMD B650
Memory	Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules
	4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPOô) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor:
	2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
	Support for DisplayPort 1.4 version and HDR.
	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	Support for HDMI 2.1 version and HDCP 2.3.
	Support native HDMI 2.1 TMDS compatible ports.
Audio	RealtekÆ Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
LAN	RealtekÆ 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	CPU:
	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
	Chipset:
	1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface	CPU:
	2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
	Chipset:
	4 x SATA 6Gb/s connectors
USB	CPU:
	1 x USB Type-CÆ port on the back panel, with USB 3.2 Gen 2 support
	1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	CPU + USB 2.0 Hub:
	4 x USB 2.0/1.1 ports on the back panel
	Chipset:
	1 x USB Type-CÆ port with USB 3.2 Gen 2 support, available through the internal USB header
	4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors`	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	3 x system fan headers
	1 x addressable LED strip header
	1 x RGB LED strip header
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-CÆ header, with USB 3.2 Gen 2 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x serial port header
	1 x reset button
	1 x reset jumper
	1 x Clear CMOS jumper

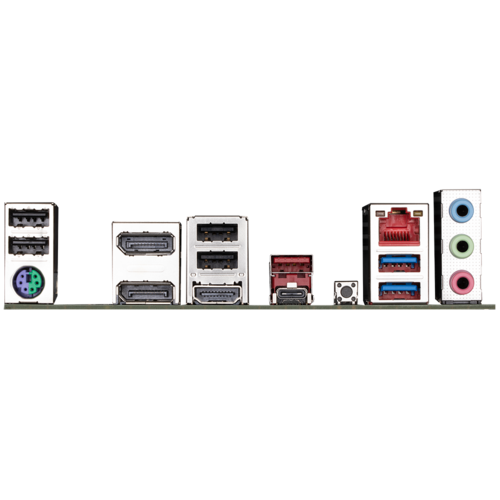

Back Panel Connectors	4 x USB 2.0/1.1 ports
	1 x PS/2 keyboard/mouse port
	2 x DisplayPorts
	1 x HDMI port
	1 x USB 3.2 Gen 2 Type-A port (red)
	1 x USB Type-CÆ port, with USB 3.2 Gen 2 support
	1 x Q-Flash Plus button
	1 x RJ-45 port
	2 x USB 3.2 Gen 1 ports
	3 x audio jacks
I/O Controller	iTEÆ I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Fan fail warning
	Fan speed control
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	Support for Q-Flash
	Support for Q-Flash Plus
Bundled Software	NortonÆ Internet Security (OEM version)
Bundled Software	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Operating System	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
