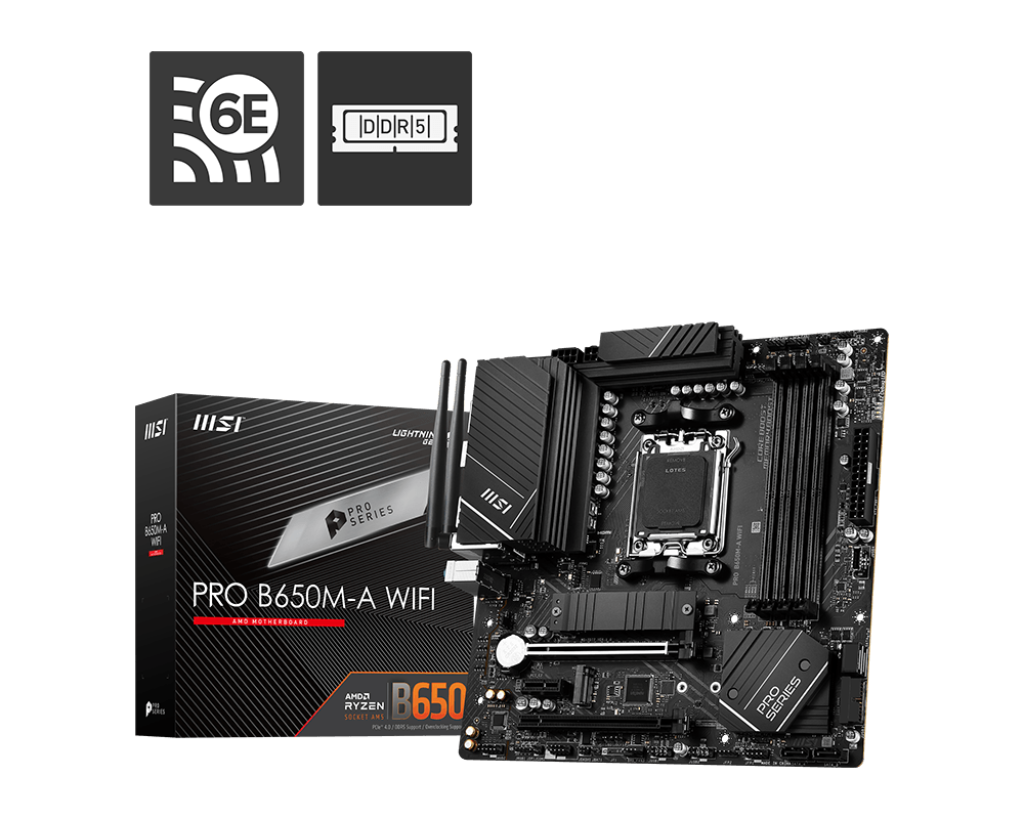

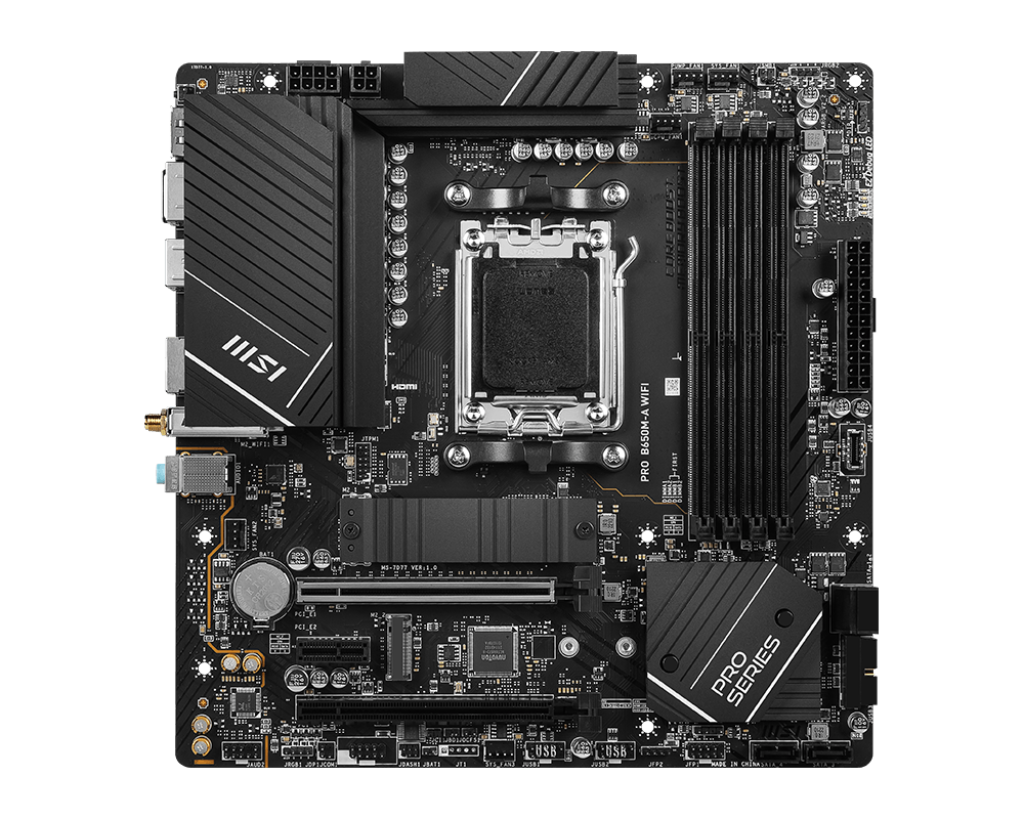

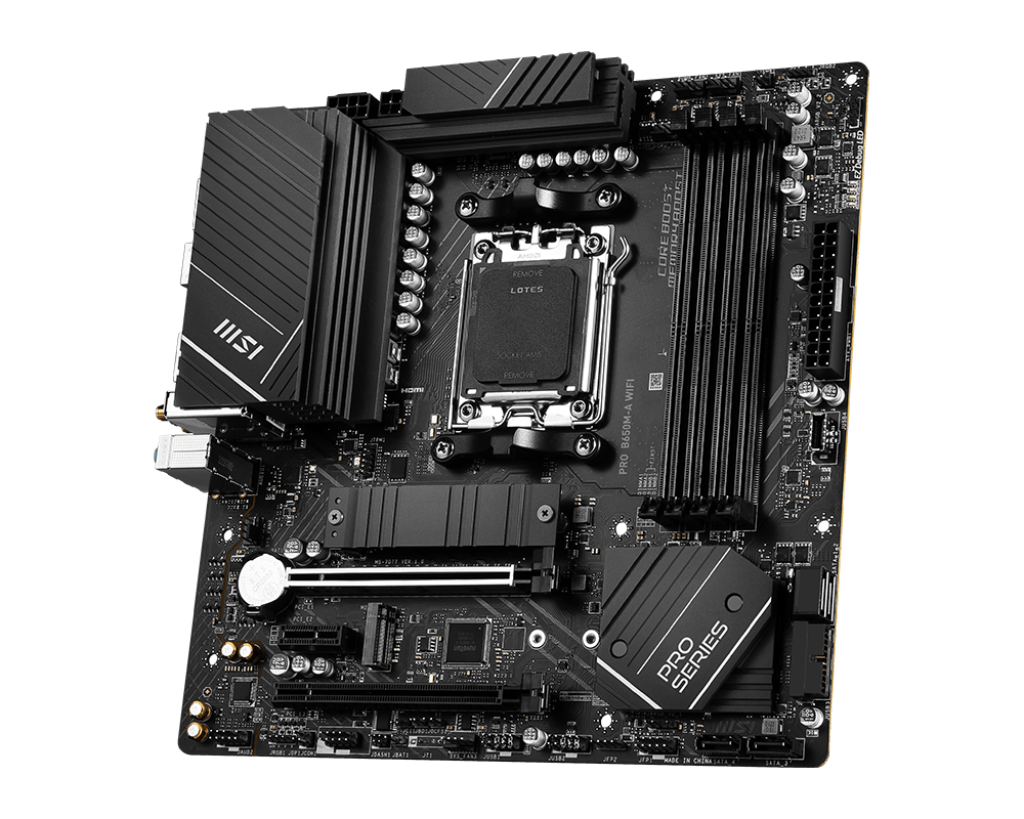

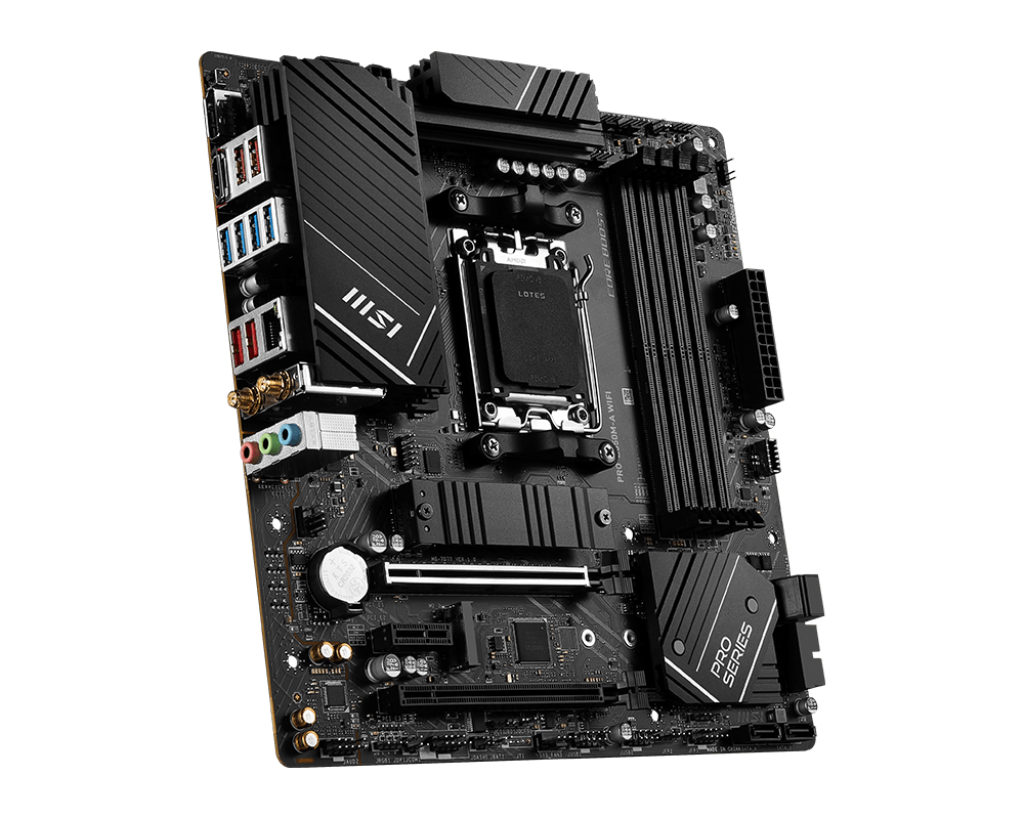

MSI B650M-A PRO WIFI AMD AM5 MOTHERBOARD

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Socket AM5

•      4x DDR5, Maximum Memory Capacity 256GB
  Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
  Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7200+ MHz
  • 1DPC 2R Max speed up to 6000+ MHz
  • 2DPC 1R Max speed up to 6000+ MHz
  • 2DPC 2R Max speed up to 5400+ MHz

  Supports Dual-Channel mode
  Supports non-ECC, un-buffered memory
  Supports AMD EXPO

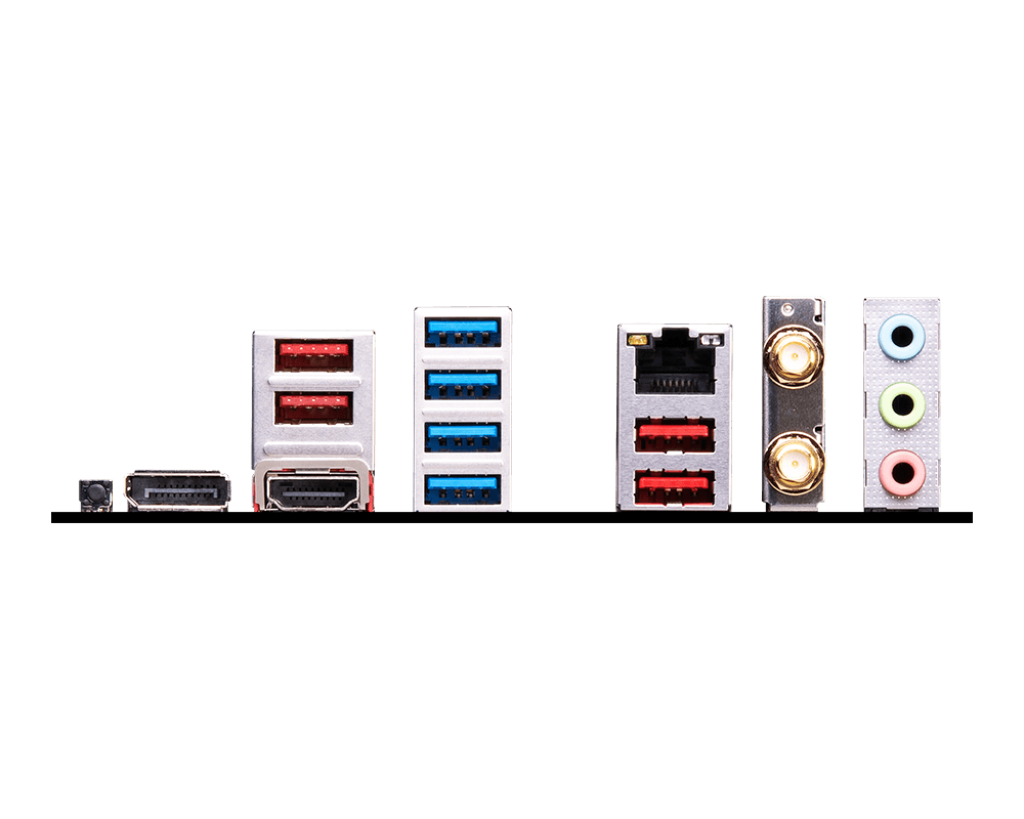

• 1x HDMI
• 1x DisplayPort
• Support HDMITM
• 2.1,maximum resolution of 4K 60Hz
• Supports DP1.4
• maximum resolution of 4K 60Hz

2x M.2 slot

• M.2_1 (From CPU) supports up to PCIe 4.0 x4  supports 2280/2260 devices
• M.2_2 (From CPU) supports up to PCIe 4.0 x4 supports 2280/2260 devices 4x SATA 6G port

• 4x USB 2.0 (Front)
• 4x USB 3.2 Gen1 Type A (Rear)
• 2x USB 3.2 Gen1 Type A (Front)
• 4x USB 3.2 Gen2 Type A (Rear)
• 1x USB 3.2 Gen2 Type C (Front)

• AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2**

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 3x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 1x Tuning Controller connector(JDASH)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 2x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0
• 2x USB 3.2 Gen1 Type A
• 1x USB 3.2 Gen2 Type C
