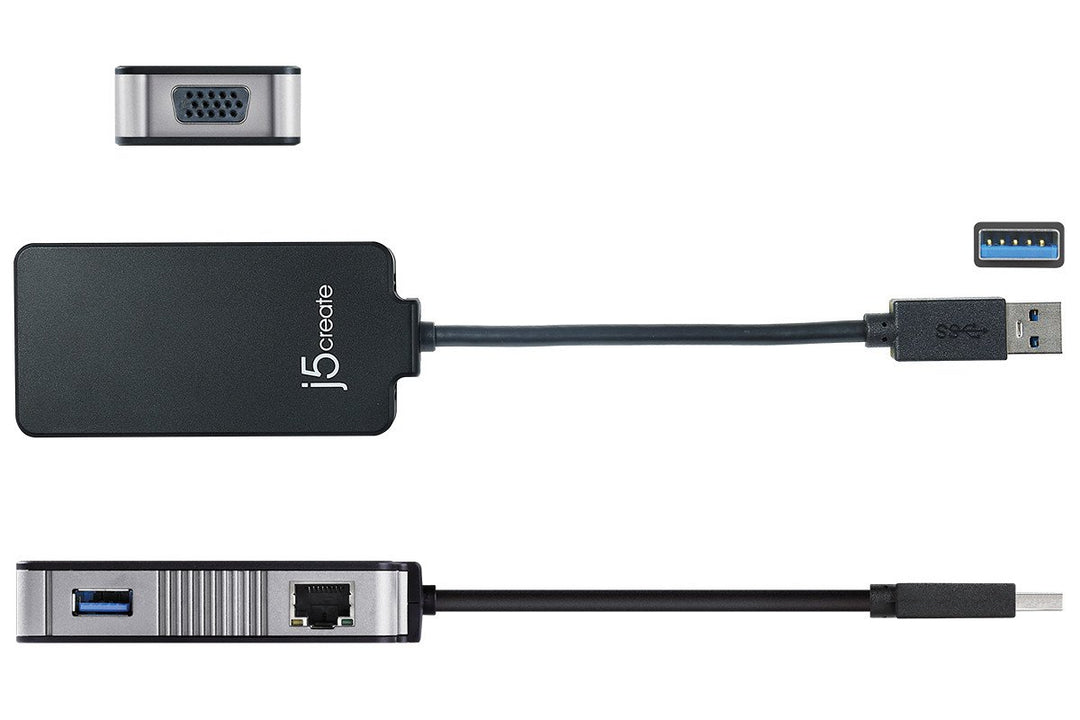

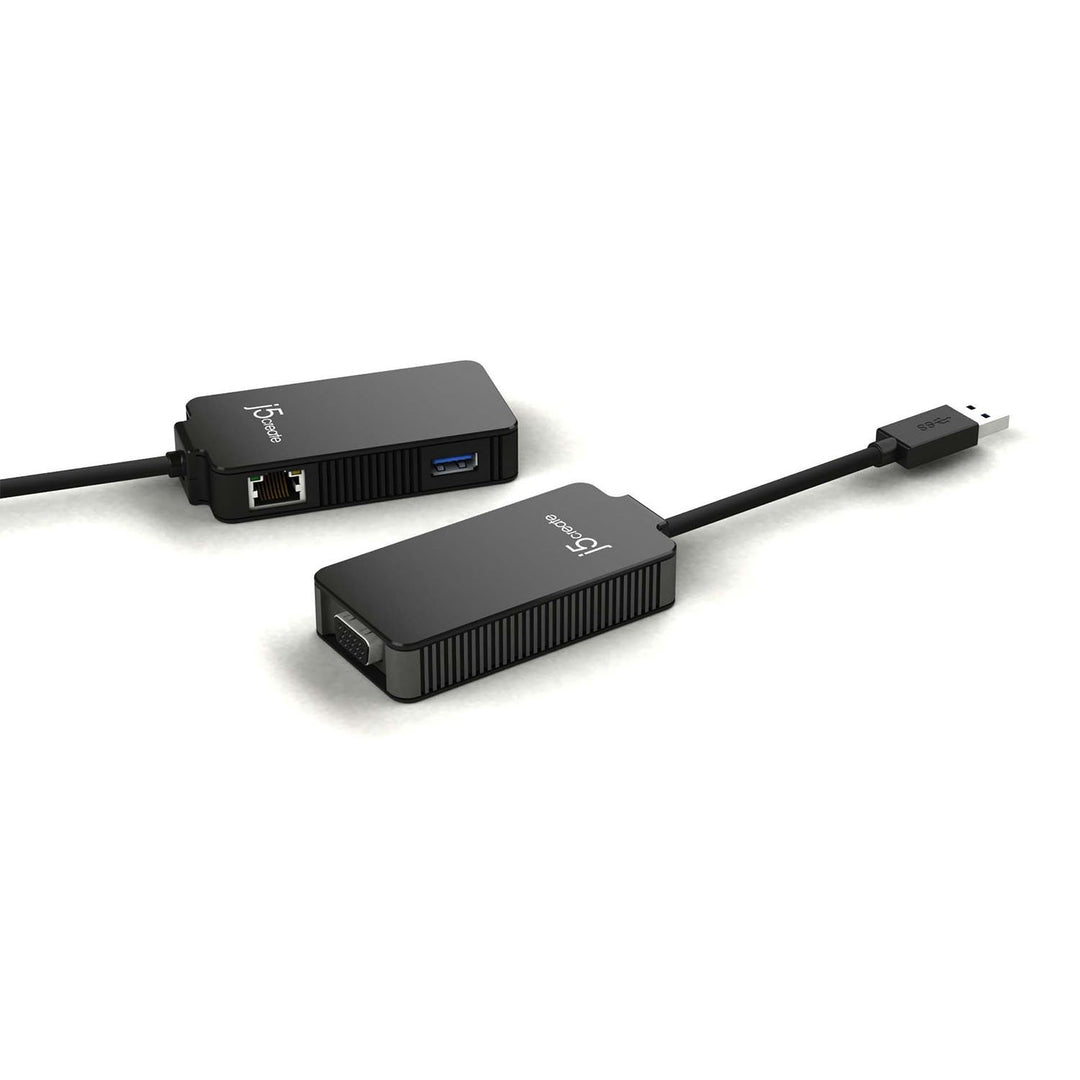

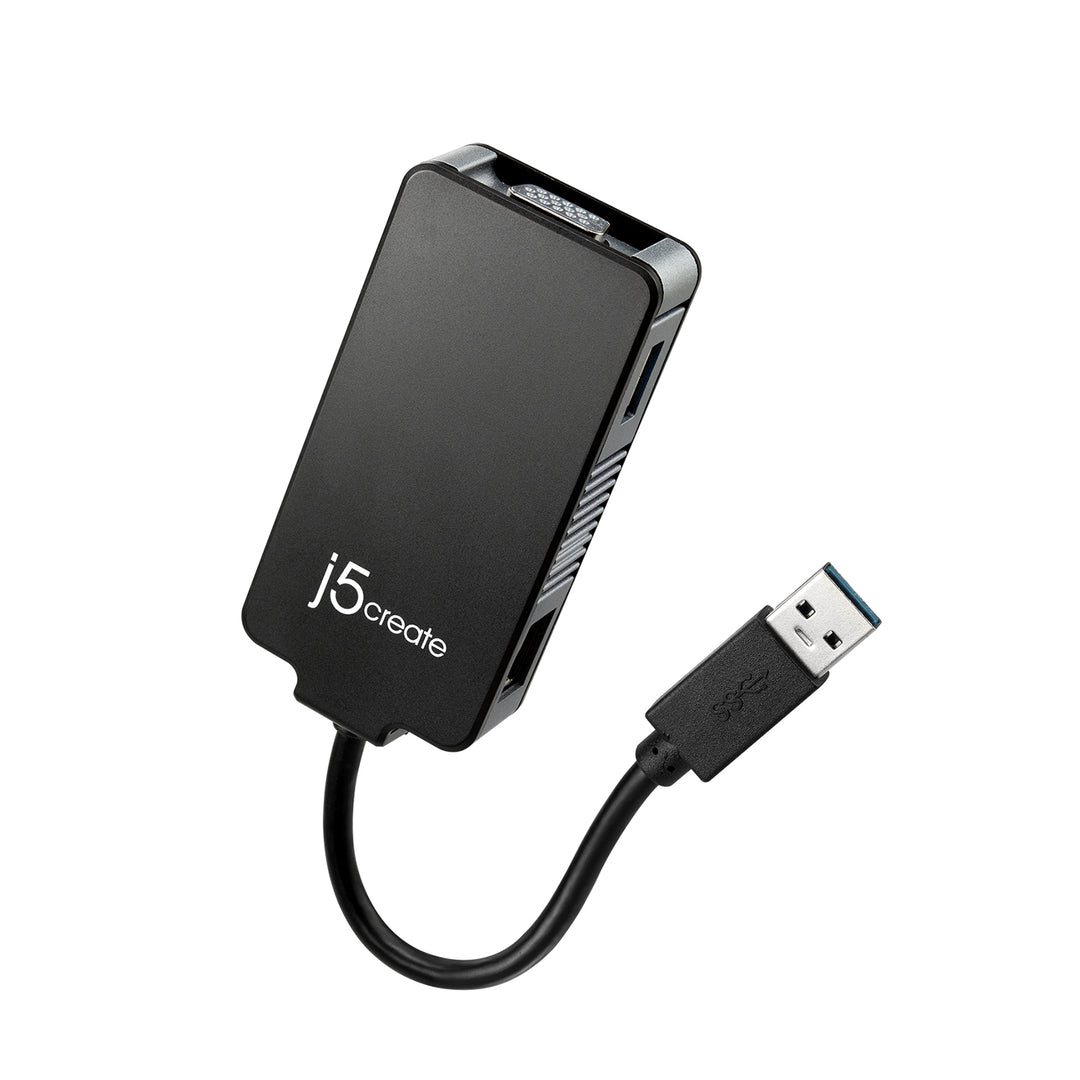

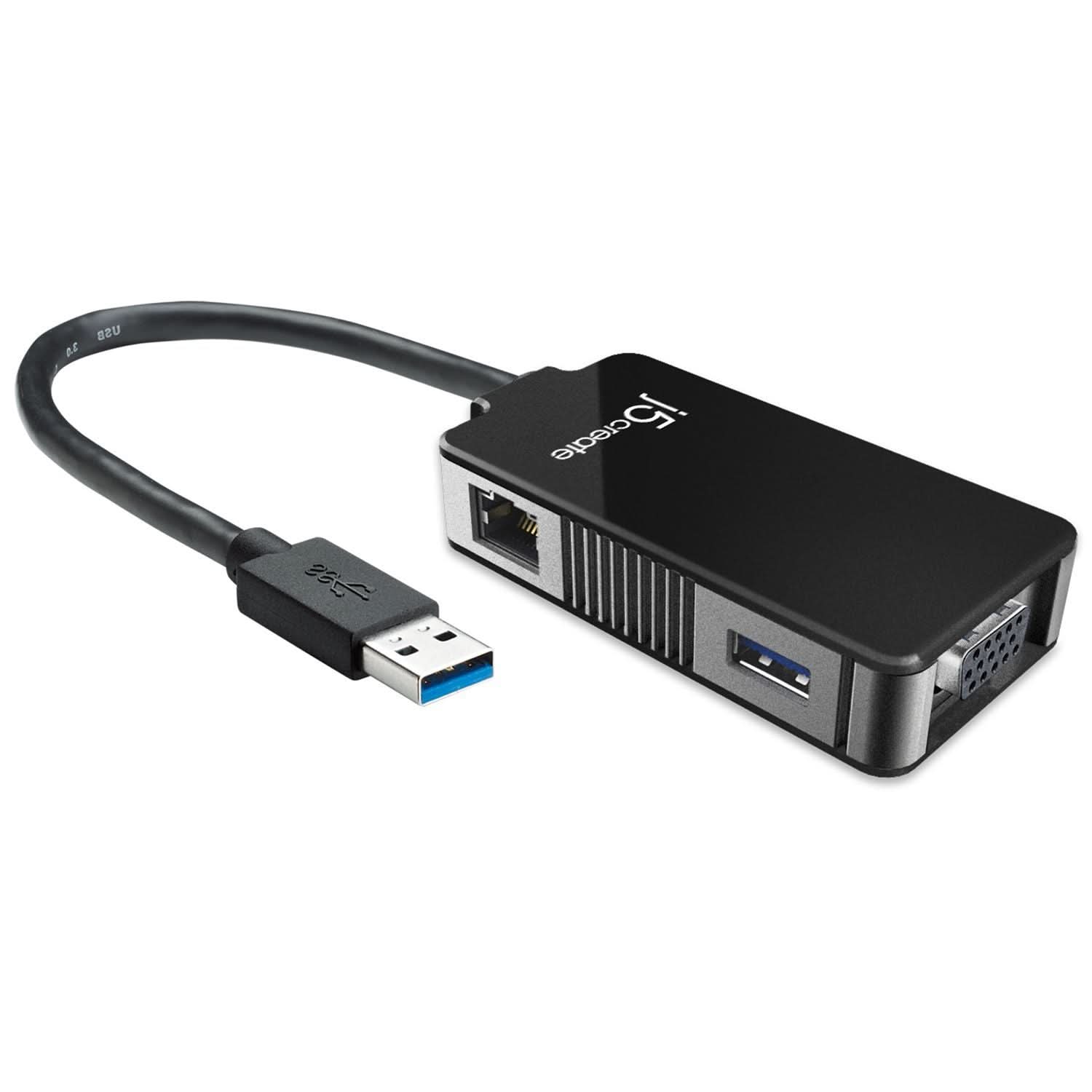

J5CREATE USB 3.0 MULTI-ADAPTER VGA & GIGABIT ETHERNET

About This Product

USB 3.0 SuperSpeed
• USB 3.0 SuperSpeed port
• Transfer rates of up to 5 Gbps, enable bulky file backup
• Backwards compatible with USB 2.0 and USB 1.1 devices
• Hot-swapping connect / disconnect without powering down
• Plug-and-play
• Compatible with Windows and Mac OS

USB 3.0 Display
• Supports display resolution: 2048x1152 @ 32 bit
• Supports 1080p Video Playback
• Supports Display Modes: Primary, Extended, Mirror
• Display Rotation: 0°, 90°, 180°, 270° (Please note: Rotation Mode functions on Windows only)

USB 3.0 Gigabit Ethernet
• Quickly add a Gigabit Ethernet port through USB 3.0
• USB 3.0 plug-and-play and backwards compatible with USB 2.0/1.1
• Transfer all your files almost instantly over a true Gigabit network.
• IEEE 802.3, 802.3u and 802.3ab (1BASE-T, 100BASE-TX, and 1000BASE-T) compatible
• USB bus-powered
• Activity and Link LED indicators

The JUA370 USB 3.0 Multi-Adapter VGA provides extra connectivity from your computer with 5 Gbps transfer speed. These pocket-sized multi-adapters allow you to add an additional USB computer peripheral, VGA Monitor or Gigabit LAN through your USB port.

With this Multi-Adapter, there's no need to open your computer to add an expensive graphics card. You can simply load the drivers, plug the adapter to the USB port, then plug in the VGA monitor cable into the adapter and you are ready.

Specifications

• Interface
  Host Interface	USB 3.0 Male Type-A connector
  Video Interface	VGA-DB 15 pin Female connector
  Ethernet Port	RJ-45 Female connector (Gigabit Ethernet)
  USB Port	USB 3.0 Female connector
  Power
  Power Mode	Bus-powered
  Functions
  Display	Video Playback: 1080p Display resolution: 2048 x 1152 @ 32 bit Display Modes: Primary, Extended, Mirror Display Rotation: 0°, 90°, 180°, 270°
  Ethernet	Transfer Rate: 1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex) IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x Modes: Supports Wake on LAN function, suspend mode and remote wakeup via link-change, Magic Packet, or Microsoft wake-up frame Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering Supports Jumbo Frame Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload
  Physical Specifications
  Dimensions	Main body: 43.75 (W) x 90.6 (H) x 18.6 (D) mm Cable length: 14.5 cm
  Weight	Approximately 58.5 g (including cable)



  System Requirements

  • Microsoft® Windows® 10 or later
    macOS® 10.9 or later
  • Available USB™ 3.0 port

  Note:
  Due to constant advancements in technology we, at j5create, make it a priority to give you the latest drivers available for our products. To ensure that your device is equipped with the most current driver, please visit our driver page and install the latest driver for this model.

  Package Contents

  • JUA370 USB 3.0 Multi-Adapter VGA & Gigabit Ethernet
  • Quick Installation Guide
  • Driver CD
