Description
About the item
- Supports HDMI™ resolution up to 4K @ 144 Hz
- USB™ Type-A and USB-C® 3.2 Gen 2 port, transfer rates up to 10Gbps

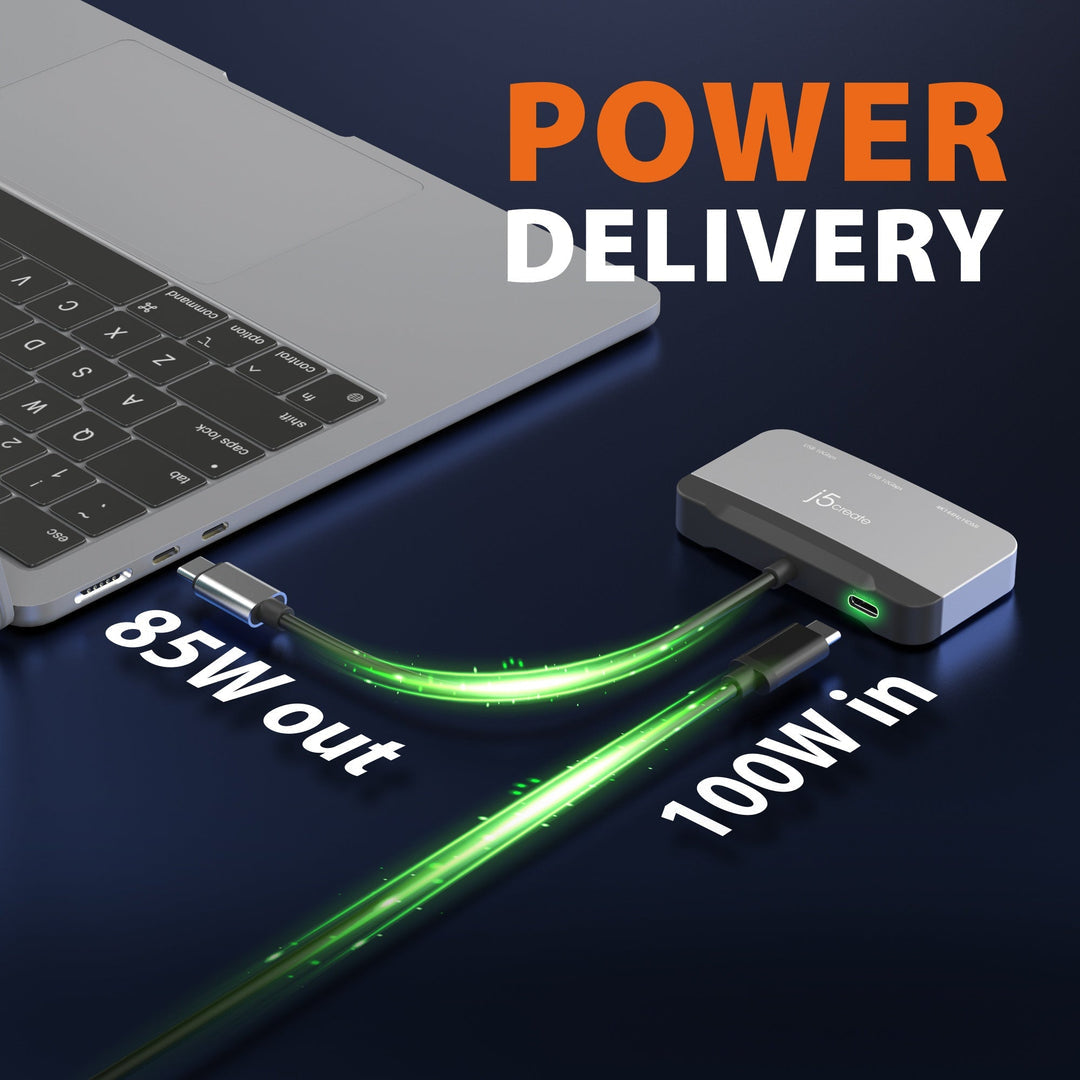

- Supports power delivery 3.0 upstream charging up to 100W
- DisplayPort™ Alternate Mode for HDMI™
- Plug-and-play, no driver installation is required
Specifications
Specification | Details |
---|---|
Audio Supported | Yes |
Host Connector | 1 - USB-C® Male |
Network Interface | N/A |
Ports | 1 - HDMI™ 4K @ 144 Hz |
1 - USB™ Type-A 3.2 Gen 2 (10Gbps) | |
1 - USB-C® Gen 2 (10Gbps) | |
1 - USB-C® with Power Delivery 3.0 (upstream charging up to 100W) | |
Power Source | Bus-powered or self-powered |
Video Output | 1 - HDMI™ Female |
Warranty | 2 Year Limited |
Performance | |
Audio Channel | N/A |
Compatible Networks | N/A |
Displays Supported | 1 |
Max Data Transfer Rate | 10Gbps |
Max Display Refresh Rate | 144 Hz |
Max Display Resolution | 3840 x 2160 @ 144Hz |
2560 x 1440 @ 144Hz | |
1920 x 1080 @ 144Hz | |
Power | |
PD Input Current | Up to 5A |
PD Input Voltage | Up to 20V |
PD Output Current | Up to 4.25A |
PD Output Voltage | Up to 20V |
Power Consumption | ≤ 350 mA |
Power Delivery | Up to 100W via USB-C® |
Physical Specifications | |
Cable Length | 7.87 in. (20 cm) |
Color | Space Grey |
Enclosure Type | Aluminum |
Operating Temperature | 30 to 106°F (-1 to 41°C) |
Product Depth | 1.8 in. / 45 mm |
Product Height | 0.43 in. / 11 mm |
Product Weight | 49.5 g / 1.75 oz |
Product Width | 3 in. / 75 mm |
Storage Temperature | 0 to 155°F (-17 to 68°C) |
Package Contents | 1 - USB-C® to USB™ 10Gbps & HDMI™ 4K 144Hz Adapter (JCA399G) |
1 - Quick Installation Guide (QIG) |
