Description
Product Description
-

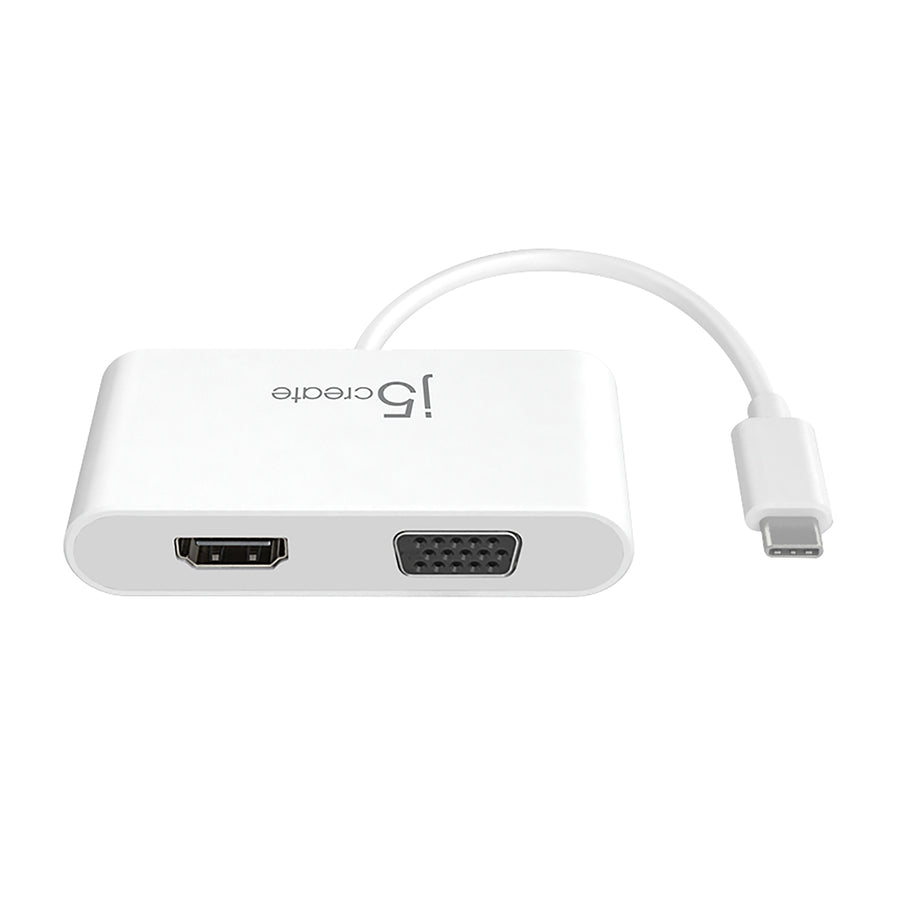

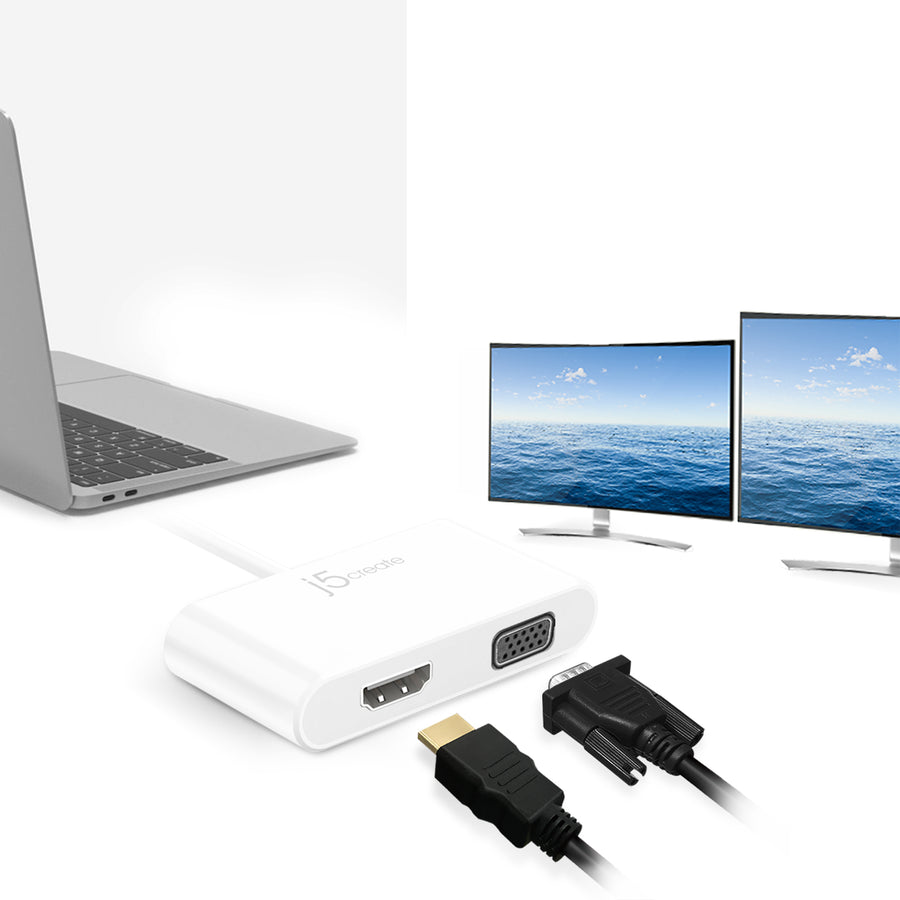

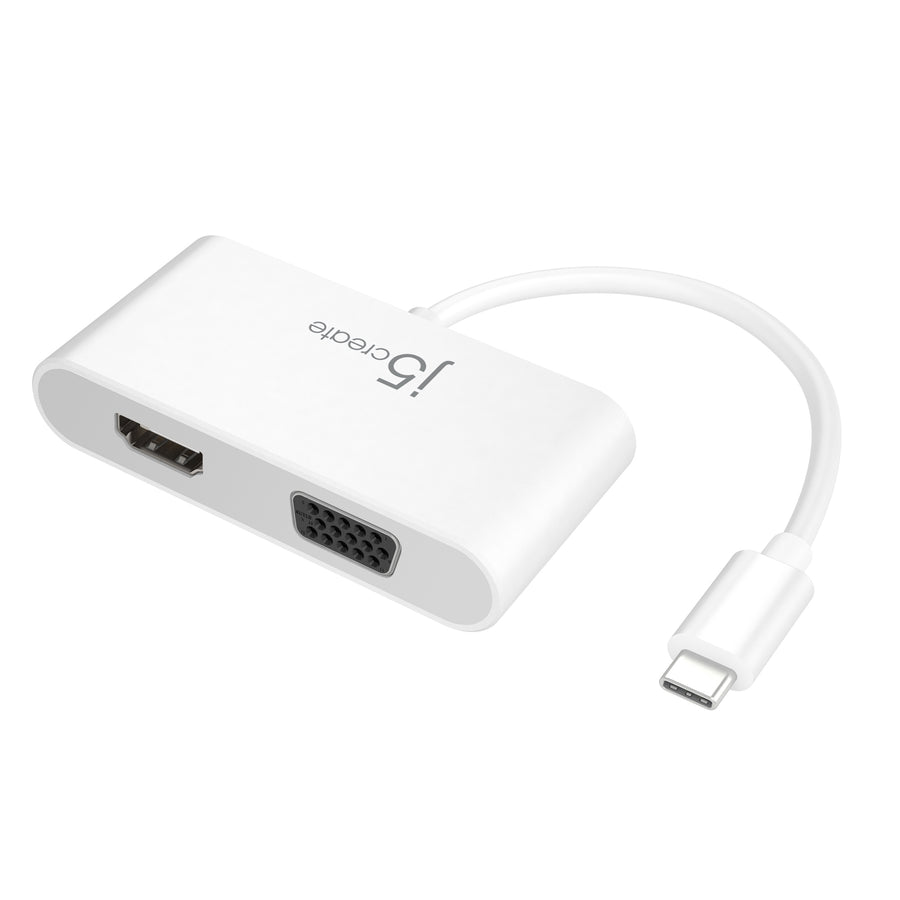

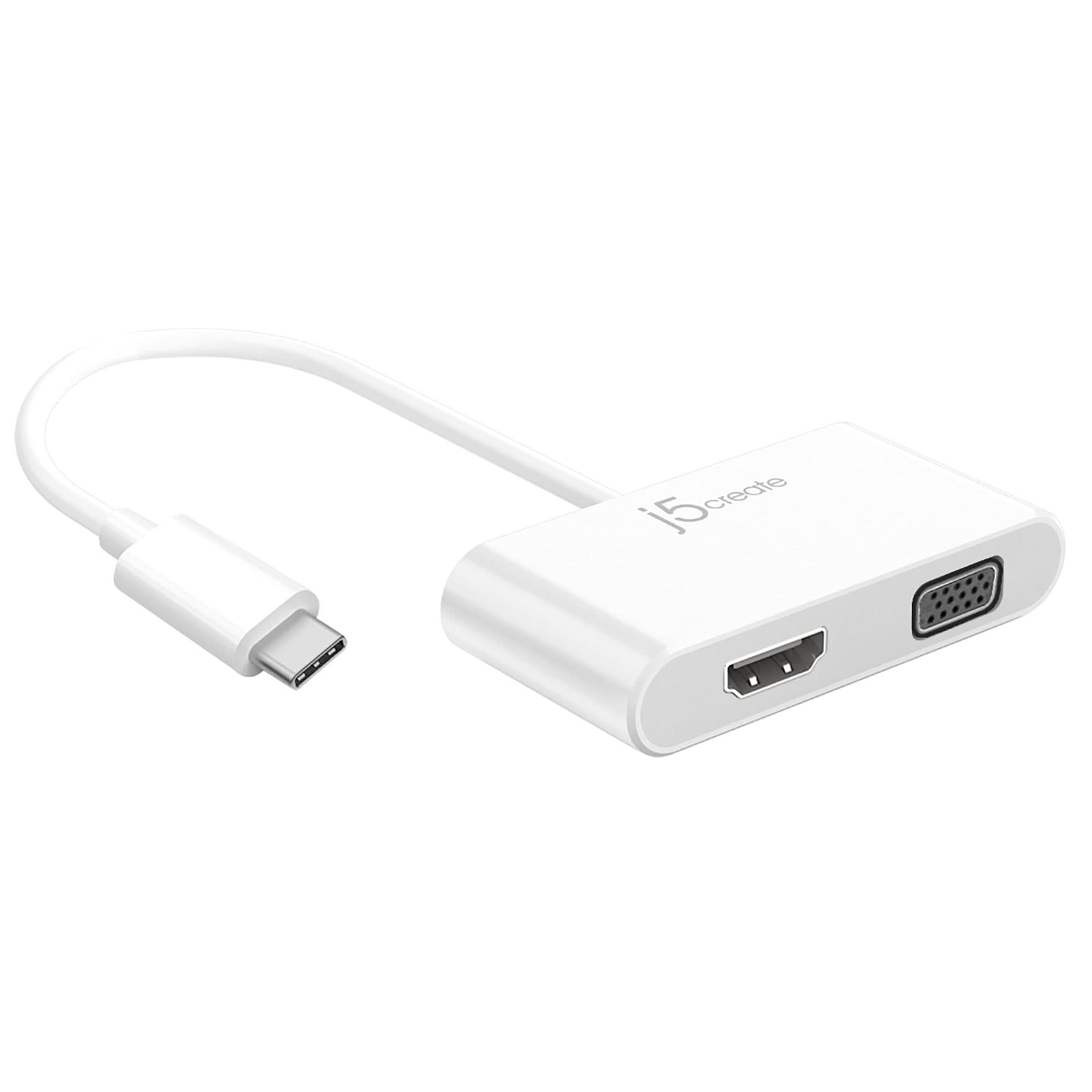

The JCA174 is a lightweight and portable adapter that connects a USB Type-C™ to an HDMI™ and VGA monitor or projector through an HDMI™ and a VGA cable. It supports HDMI™ resolutions up to 4K (3840 x 2160 @ 60 Hz) and VGA resolutions up to 1080P (1920 x 1080 @ 60 Hz) when they are used separately, which allows you to capture every detail of an image and gives you audio output to your external display screen through HDMI™. Both Mirror mode and Extended mode are supported when the HDMI™ or VGA port is used separately. When the two output ports are used simultaneously, the maximum resolution of both of them together is 1080P @ 60 Hz and only Mirror mode is supported.
Plug-and-play, no drivers or software required. No external power supply needed. You can use it anytime, anywhere. 2-in-1 ports enable you to add devices such as an external monitor, TV or projector simultaneously for extending your HDMI™ or VGA input terminals. Portable for easy carrying when traveling. Great for use in the office, home theater, teaching, etc.
Features
- • Dual screen display
- • Supports HDMI™ resolutions up to 4K at 3840 x 2160 @ 60 Hz; VGA resolutions up to 1920 x 1200 or 1080P @ 60 Hz. Supports Mirror and Extended modes.
- • When connected to both the VGA and HDMI™, only Mirror mode is supported with a resolution up to 1920 x 1080 @ 60 Hz; Extended mode is not supported.
- • The HDMI™ port transfers audio and video, the VGA port transfers video.
- • No software/drivers required
Interface Interface
USB-C™ male connector
Video Interface
HDMI™ female connector
VGA female connectorFunctions Display
HDMI™ display resolution: 3840 X 2160 @ 60 Hz
VGA display resolution:1920 X 1200 @ 60 HzPhysical Specifications Housing Material
Plastic
Dimensions
Main body: 75.4 (H) x 37.8 (W) x 15.2 (D) mm
Cable Length: 5.90 in./15 cmWeight
Approximately 38.5g
System Requirements- Available DisplayPort™ Alt Mode over USB-C™ port
Package Contents- USB-C™ to Dual VGA & HDMI™ Multi-Display Adapter
- Quick Installation Guide
